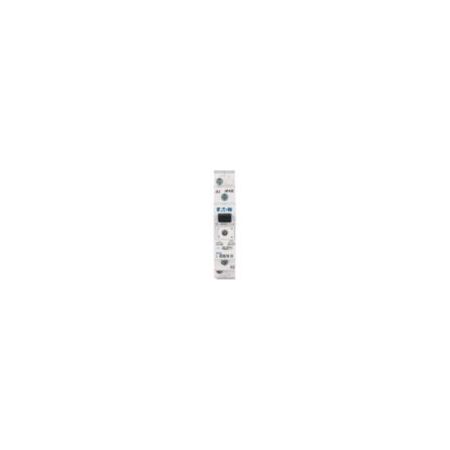

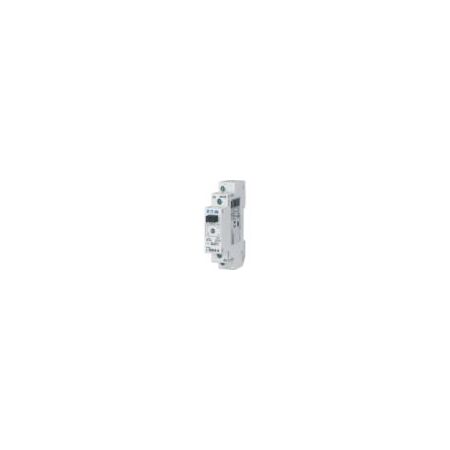

Installation Relay 230V 16A | 1 Normally Open Contact | DIN Rail Mount | Low Heat Dissipation by Eaton
The Eaton Z-R230/16-10 installation relay operates at 230V with a 16A rating and features 1 normally open contact—ideal for industrial control panels and automation systems. Built for professional installation, it ensures compliance with safety standards while offering low heat dissipation for energy efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Installation Relay 230V 16A | 1 Normally Open Contact | DIN Rail Mount | Low Heat Dissipation by Eaton
Brand: Eaton
SKU: ICS-R16A230B100
Alternatively Known As: Eaton Installation Relay 230V 16A, Eaton ICS-R16A230B100 Relay, DIN Rail Relay 16 Amp 230V
Technical Specifications
- Control voltage: 230 V AC (196 V min - 250 V max)
- Frequency: 50-60 Hz
- Amperage rating: 16 A
- Number of contacts: 1 normally open (NO)
- Incandescent lamp load max: 720 W
- Fluorescent lamp load max: 303 VA
- Fluorescent lamp duo circuit max: 541 VA
- Fluorescent lamp parallel compensated max: 271 VA
- Switching current (cos phi = 0.6) max: 5 A
- Width: 1 modular spacing
- Built-in depth: 60 mm
- Mechanical function relay
- Mounting: DIN rail
- Heat dissipation: 1.6 W
- Dimensions (H x L x W): 73mm x 90mm x 17.5mm
- Weight: 0.076 kg
Key Features
- Installation relay with 1 normally open (NO) contact
- Rated operational current of 16 A
- Control voltage: 230 V AC
- Mechanical function relay
- Mounting method: DIN rail
- Low heat dissipation of 1.6 W
Professional Installation Requirements
- Installation by a qualified electrician or panel builder is required to ensure compliance with electrical safety standards and proper integration into switchgear.
Applications
- Industrial control panels
- Electrical distribution systems
- Automation systems requiring relay switching
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- RoHS compliant, ensuring reduced hazardous substances
- Low power heat dissipation improves energy efficiency
Warranty Information
Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Eaton Z-R230/16-10 installation relay is available for immediate purchase, ideal for industrial and commercial electrical control applications.
