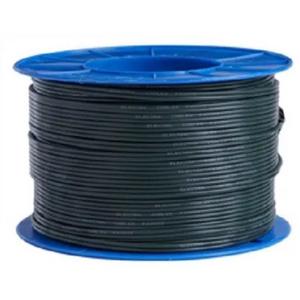

Instrumentation Cable 0.5mm Overall Screened | Multi-Pair Design | PVC Insulation | by Electra Cables
Instrumentation Cable 0.5mm is designed for reliable internal and external interconnections of electronic apparatus. Featuring an overall screened multi-pair design with plain annealed copper conductors and PVC insulation, this cable is perfect for applications in computer systems, intercoms, and alarm systems. Built for low voltage use, it ensures safety and compliance with AS/NZS standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Instrumentation Cable 0.5mm, Overall Screened Instrumentation Cable, Multi Pair Instrumentation Cable
Technical Specifications
- Conductor: Plain annealed copper wire
- Insulation: PVC V90HT or V75
- Screen: Aluminium tape screen with polyester mylar tape lapping and 7/0.20mm tinned copper drain wire
- Sheath: PVC 5V-90 or 4V-75
- Voltage: 240V radial thickness sheath, not for mains power
- Standards: AS1125 (conductor), AS/NZS 3808 (PVC)
- Dimensions (H x L x W): 6mm x 1000mm x 6mm
- Weight: 0.1 kg
Key Features
- Overall screened multi-pair cable
- Plain annealed copper conductor
- PVC insulation (V90HT or V75)
- Aluminium tape screen with polyester mylar tape lapping
- 7/0.20mm tinned copper drain wire
- PVC sheath (5V-90 or 4V-75)
- Voltage rating suitable for 240V radial thickness sheath, not for mains power
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with low voltage instrumentation cabling to ensure compliance and safety.
Applications
- Internal and external inter-connections of electronic apparatus
- Computer systems
- Intercoms
- Telemetering
- Signalling and alarm systems
Standards & Compliance
- AS/NZS 3808 – PVC Insulation and Sheath Standards
Environmental Benefits
- PVC insulation and sheath materials are recyclable
- Designed for low voltage applications reducing energy loss
Warranty Information
Standard manufacturer warranty applies. Please refer to Electra Cables for specific warranty details.
Available Now
Electra Cables Instrumentation Cable 0.5mm 7/0.30 1 Pair Overall Screened is available for immediate purchase, ideal for electronic interconnection applications in industrial and commercial settings.
