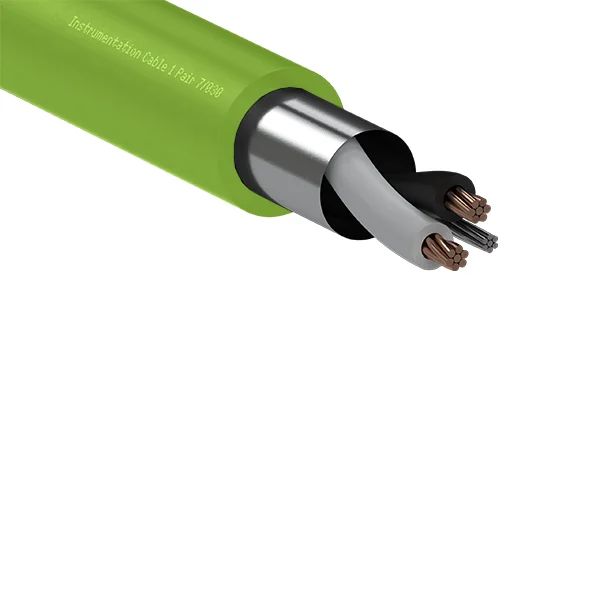

Instrumentation Cable 1 Pair 0.5mm | 0.6/1kV Voltage | Overall Screened & LSZH Sheath | Green | Per 100m by Eltech
Instrumentation cable with 0.5mm pair conductors and 0.6/1kV voltage rating—ideal for data transmission in industrial environments. Built for safety with an overall screened design and low smoke zero halogen (LSZH) sheath, ensuring reliable signal transmission.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Instrumentation Cable 1 Pair 0.5mm 7/030 O/A Screened – 0.6/1kv Special – Green – LSZH
Brand: Eltech
SKU: ELT7301P-SHV-GN
Alternatively Known As: Instrumentation Cable 0.5mm Pair Screened LSZH, Data Instrumentation Cable Green, 0.6/1kV Instrumentation Cable
Technical Specifications
- Conductor Size: 0.5mm
- Conductor Construction: 7/0.30mm strands
- Voltage Rating: 0.6/1kV
- Screening: Overall screened
- Sheath Material: Low Smoke Zero Halogen (LSZH)
- Colour: Green
- Drum Length: 500m
- Minimum Order Quantity: 100m increments
- Dimensions (H x L x W): 6mm x 500000mm x 6mm
- Weight: 0.1 kg
Key Features
- 1 pair conductor with 0.5mm size
- Overall screened for protection against electromagnetic interference
- Low Smoke Zero Halogen (LSZH) sheath for enhanced safety
- Voltage rating of 0.6/1kV
- Green outer sheath for easy identification
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician experienced with instrumentation cables to ensure compliance and safety.
Applications
- Instrumentation and control systems
- Data transmission in industrial environments
- Signal and measurement circuits
Standards & Compliance
- Complies with AS/NZS 5000 series for electrical cables and wiring
Environmental Benefits
- Low Smoke Zero Halogen (LSZH) sheath reduces toxic emissions in case of fire
- Durable construction reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to Eltech for specific warranty details.
Available Now
The Eltech Instrumentation Cable 1 Pair 0.5mm 7/030 O/A Screened 0.6/1kV LSZH Green is available now for immediate purchase. Ideal for industrial and instrumentation applications requiring reliable signal transmission and safety.
