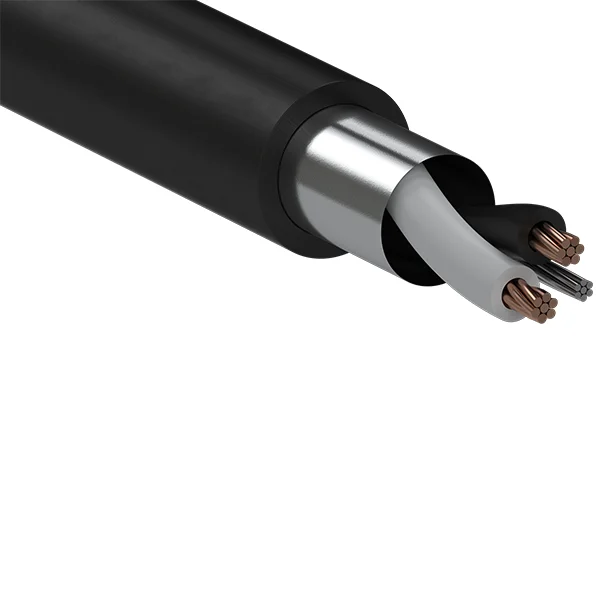

Instrumentation Cable 1 Pair 0.5mm | Overall Screened | Black PVC Sheath | 100m Drum | Per 100m by Eltech
Instrumentation cable with 1 pair of 0.5mm conductors and overall screening—ideal for data transmission in industrial environments. Built for reliable performance, with a durable black PVC sheath and supplied on a 100m drum for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Instrumentation Cable 1 Pair 0.5mm 7/030 O/A Screened – 100m Drum
Brand: Eltech
SKU: ELT7301P-100
Alternatively Known As: Instrumentation Data Cable, Screened Instrumentation Cable, 0.5mm Instrumentation Wire
Technical Specifications
- Conductor Size: 0.5mm
- Conductor Construction: 7 strands of 0.30mm wire
- Number of Cores: 1 pair
- Screening: Overall screen for EMI protection
- Outer Sheath Colour: Black
- Drum Length: 100 meters
- Dimensions (H x L x W): 10mm x 100000mm x 10mm
- Weight: 2 kg
Key Features
- 1 pair of conductors with 0.5mm cross-sectional area
- Overall screened for protection against electromagnetic interference
- Black PVC outer sheath for durability and insulation
- Supplied on a 100m drum for ease of use and installation
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician to ensure compliance with safety and performance standards.
Applications
- Instrumentation and control systems
- Data transmission in industrial environments
- Signal and low voltage applications
Standards & Compliance
- Complies with AS/NZS 5000 series for electrical cables and wiring
Environmental Benefits
- Durable PVC sheath extends cable life reducing waste
- Screening reduces signal interference, improving system efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to Eltech warranty policy for details.
Available Now
The Eltech Instrumentation Cable 1 Pair 0.5mm 7/030 O/A Screened – 100m Drum is available now for immediate purchase. Ideal for industrial and instrumentation applications requiring reliable screened cabling.
