Trade Discount 17%

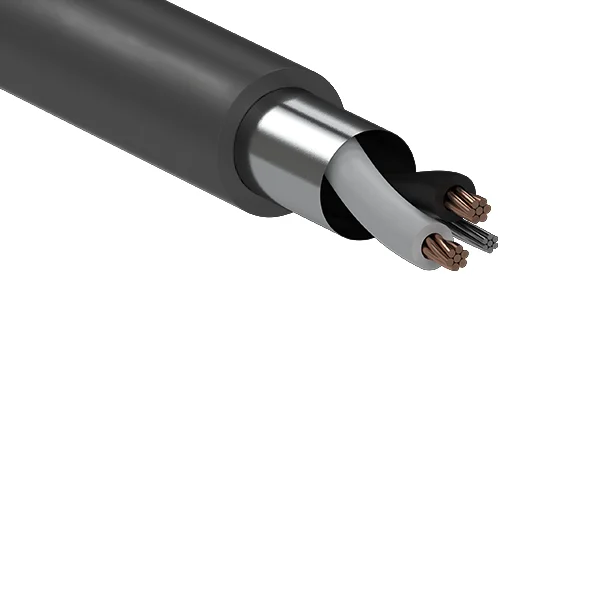

Instrumentation Cable 1 Pair 0.5mm | Overall Screened | Grey PVC Sheath | Per 100m by Eltech
Instrumentation cable featuring 1 pair of 0.5mm conductors and overall screening for EMI protection—ideal for industrial instrumentation and control systems. Built for reliable data transmission, with a durable grey PVC outer sheath.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Instrumentation Cable 1 Pair 0.5mm 7/030 O/A Screened – Grey
Brand: Eltech
SKU: ELT7301P.6
Alternatively Known As: Instrumentation Data Cable, Screened Instrumentation Cable, 0.5mm Instrumentation Wire
Technical Specifications
- Conductor Size: 0.5mm
- Conductor Construction: 7 strands of 0.30mm wire
- Number of Cores: 1 pair
- Screening: Overall screen for EMI protection
- Outer Sheath Colour: Grey
- Drum Length: 500 meters
- Minimum Order Quantity: 100 meters increments
- Dimensions (H x L x W): 6mm x 500000mm x 6mm
- Weight: 5 kg
Key Features
- 1 pair of conductors with 0.5mm cross-sectional area
- Overall screened for protection against electromagnetic interference
- Grey PVC outer sheath for durability and identification
Professional Installation Requirements
- Installation should be performed by qualified electricians or technicians familiar with instrumentation cabling standards to ensure proper screening and signal integrity.
Applications
- Industrial instrumentation and control systems
- Data transmission in automation and process control
- Signal and low voltage applications in manufacturing plants
Standards & Compliance
- Complies with AS/NZS 5000.1 for electrical cables
Environmental Benefits
- PVC insulation and sheath materials are recyclable
- Screening reduces signal loss, improving energy efficiency in data transmission
Warranty Information
Standard manufacturer warranty applies. Please refer to Eltech for detailed warranty terms.
Available Now
The Eltech Instrumentation Cable 1 Pair 0.5mm 7/030 O/A Screened – Grey is available for immediate purchase, ideal for industrial and instrumentation applications requiring reliable screened cabling.
