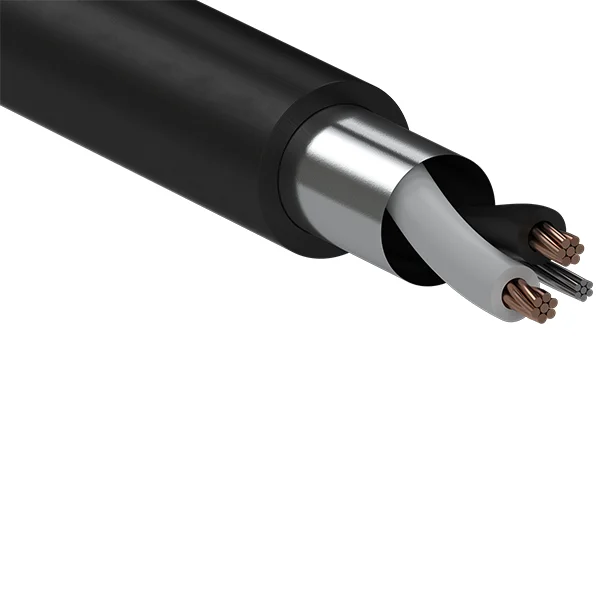

Instrumentation Cable 1 Pair 0.88mm | Overall Screened | LSZH Enviroflex Black | Per 100m by Eltech
Instrumentation cable with 0.88mm conductor size and overall screening—ideal for data transmission in industrial environments. Built for safety with a low smoke zero halogen (LSZH) jacket, ensuring minimal toxic emissions in case of fire.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Instrumentation Cable 1 Pair 0.88mm 7/040 O/A Screened – LSZH Enviroflex Black
Brand: Eltech
SKU: ELT7401P-ENV
Alternatively Known As: Instrumentation Cable 1 Pair Screened LSZH, Enviroflex Instrumentation Cable, 0.88mm Instrumentation Cable
Technical Specifications
- Conductor Size: 0.88mm (7/040 strands)
- Number of Cores: 1 Pair
- Screening: Overall screened
- Sheath Material: LSZH Enviroflex Black
- Drum Length: 500m
- Minimum Order Quantity: 100m increments
- Dimensions (H x L x W): 6mm x 500000mm x 6mm
- Weight: 3 kg
Key Features
- 1 pair conductor configuration
- Overall screened for electromagnetic interference protection
- Low Smoke Zero Halogen (LSZH) jacket for enhanced safety
- Black Enviroflex outer sheath for durability and environmental resistance
Professional Installation Requirements
- Installation should be performed by qualified professionals following relevant electrical standards and safety practices.
Applications
- Instrumentation and control systems
- Data transmission in industrial environments
- Signal and communication wiring in automation
Standards & Compliance
- Complies with AS/NZS 5000 series for electrical cables and wiring
- Meets AS/NZS 3808 for low smoke zero halogen cables
Environmental Benefits
- Low Smoke Zero Halogen (LSZH) jacket reduces toxic emissions in case of fire
- Environmentally friendly materials used in cable construction
Warranty Information
Standard manufacturer warranty applies. Please refer to Eltech warranty policy for details.
Available Now
The Eltech Instrumentation Cable 1 Pair 0.88mm 7/040 O/A Screened LSZH Enviroflex Black is available for immediate purchase, ideal for instrumentation and data transmission applications in industrial environments.
