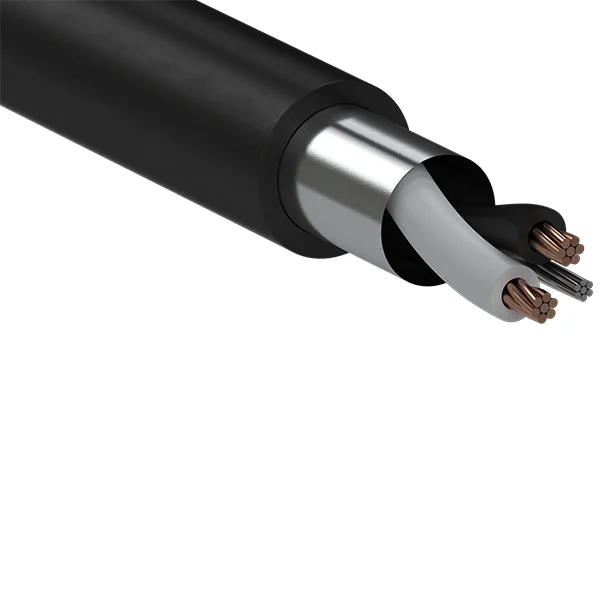

Instrumentation Cable 1 Pair 1.0mm | Overall Screened | Black PVC Sheath | Per 100m by Eltech
Instrumentation cable with 1 pair of 1.0mm conductors and overall screening—ideal for industrial control systems. Built for reliable data transmission, with durable black PVC insulation for enhanced protection against EMI.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Instrumentation Cable 1 Pair 1.0mm 7/040 O/A Screened
Brand: Eltech
SKU: ELT7401P
Alternatively Known As: Instrumentation Signal Cable, Screened Control Cable, 1 Pair Instrumentation Wire
Technical Specifications
- Conductor Size: 1.0mm²
- Conductor Construction: 7 strands of 0.40mm wire
- Number of Cores: 1 Pair
- Screening: Overall screen for EMI protection
- Outer Sheath Colour: Black
- Drum Length: 500 meters
- Minimum Order Quantity: 100 meters increments
- Dimensions (H x L x W): 8mm x 500000mm x 8mm
- Weight: 5 kg
Key Features
- 1 pair of conductors with 1.0mm cross-sectional area
- Overall screened for protection against electromagnetic interference
- Black PVC outer sheath for durability and insulation
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician experienced with instrumentation cabling to ensure proper screening and connection.
Applications
- Industrial instrumentation and control systems
- Data transmission in automation and monitoring
- Signal and control wiring in manufacturing plants
Standards & Compliance
- Complies with AS/NZS 5000 series for electrical cables and wiring
Environmental Benefits
- Durable PVC insulation extends cable life reducing waste
- Screening reduces electromagnetic interference, improving system efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to Eltech for specific warranty details.
Available Now
The Eltech Instrumentation Cable 1 Pair 1.0mm 7/040 O/A Screened is available for immediate purchase, ideal for industrial and instrumentation control applications.
