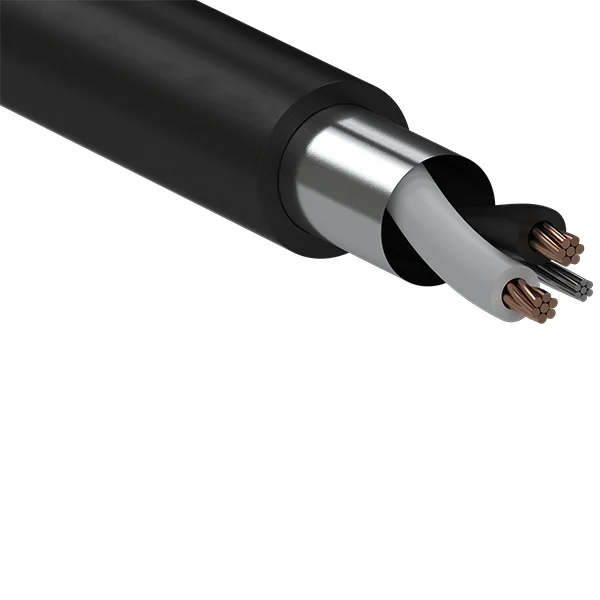

Instrumentation Cable 1 Pair 1.5mm | LSZH Jacket | Screened for Interference | Black | Per 100m by Eltech
Instrumentation cable with 1 pair 1.5mm conductors and LSZH jacket—ideal for data transmission in industrial environments. Built for safety with reduced electromagnetic interference, featuring a durable black Enviroflex outer sheath.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Instrumentation Cable 1 Pair 1.5mm 7/050 O/A Screened – LSZH Enviroflex Black
Brand: Eltech
SKU: ELT7501P-ENV
Alternatively Known As: 1 Pair Instrumentation Cable, LSZH Instrumentation Cable, Screened Instrumentation Cable, Enviroflex Instrumentation Cable
Technical Specifications
- Conductor Size: 1.5mm²
- Conductor Construction: 7 strands of 0.50mm diameter
- Number of Cores: 1 Pair
- Screening: Overall screen to reduce electromagnetic interference
- Outer Sheath: LSZH Enviroflex Black
- Drum Length: 500m
- Minimum Order Quantity: 100m increments
- Dimensions (H x L x W): 6mm x 500000mm x 6mm
- Weight: 0.1 kg
Key Features
- 1 Pair conductor configuration
- 7/050 O/A screened for reduced interference
- Low Smoke Zero Halogen (LSZH) jacket for enhanced safety
- Black Enviroflex outer sheath
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician to ensure compliance with safety and performance standards.
Applications
- Instrumentation and control systems
- Data transmission in industrial environments
- Signal and communication wiring
Standards & Compliance
- Complies with AS/NZS 5000 series for electrical cables
- Meets AS/NZS 3808 for low smoke zero halogen cables
Environmental Benefits
- Low Smoke Zero Halogen (LSZH) jacket reduces toxic emissions in case of fire
- Environmentally friendly materials used in cable construction
Warranty Information
Standard manufacturer warranty applies. Please refer to Eltech warranty terms.
Available Now
The Eltech Instrumentation Cable 1 Pair 1.5mm LSZH Enviroflex Black is available now for immediate purchase. Ideal for instrumentation and data transmission applications in industrial and commercial settings.
