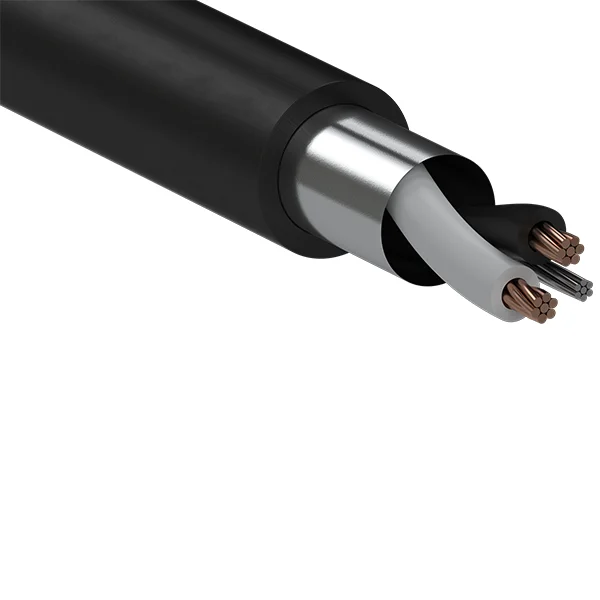

Instrumentation Cable 1 Pair 1.5mm | Overall Screened | Black PVC Sheath | 500m Length | Per 100m by Eltech
Instrumentation cable featuring 1 pair of 1.5mm conductors and overall screening for electromagnetic interference—ideal for industrial instrumentation and control systems. Built for reliable data transmission, with durable black PVC outer sheath for enhanced insulation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Instrumentation Cable 1 Pair 1.5mm 7/050 O/A Screened
Brand: Eltech
SKU: ELT7501P
Alternatively Known As: Instrumentation Cable 1.5mm 1 Pair Screened, Data Instrumentation Cable, Control Cable
Technical Specifications
- Conductor Size: 1.5mm²
- Conductor Construction: 7 strands of 0.50mm diameter copper
- Number of Cores: 1 Pair
- Screening: Overall aluminium/polyester tape with drain wire
- Outer Sheath: Black PVC
- Drum Length: 500 meters
- Minimum Order Quantity: 100 meters increments
- Dimensions (H x L x W): 8mm x 500000mm x 8mm
- Weight: 5 kg
Key Features
- 1 pair of conductors with 1.5mm cross-sectional area
- Overall screened for protection against electromagnetic interference
- Black PVC outer sheath for durability and insulation
Professional Installation Requirements
- Installation should be performed by qualified electricians or technicians familiar with instrumentation cable standards to ensure proper screening and signal integrity.
Applications
- Industrial instrumentation and control systems
- Data transmission in automation and process control
- Signal and control wiring in manufacturing plants
Standards & Compliance
- Complies with AS/NZS 5000.1 for electrical cables
Environmental Benefits
- Durable PVC insulation reduces cable replacement frequency, minimizing waste
- Screening reduces signal loss, improving energy efficiency in control systems
Warranty Information
Standard manufacturer warranty applies. Please refer to Eltech for detailed warranty terms.
Available Now
The Eltech Instrumentation Cable 1 Pair 1.5mm 7/050 O/A Screened is available now for immediate purchase. Ideal for industrial and instrumentation control applications.
