Instrumentation Cable 10 Pair 0.5mm | Overall Screened | LSZH Enviroflex Black | Per 10m by Eltech
Instrumentation cable with 10 pairs of 0.5mm conductors and overall screening for enhanced noise immunity—ideal for industrial instrumentation and data transmission. Built for automation and process control, with a durable LSZH Enviroflex black jacket for improved safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

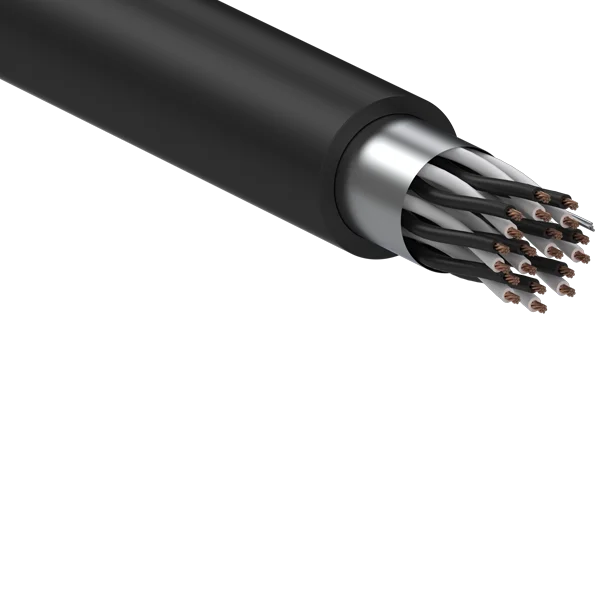

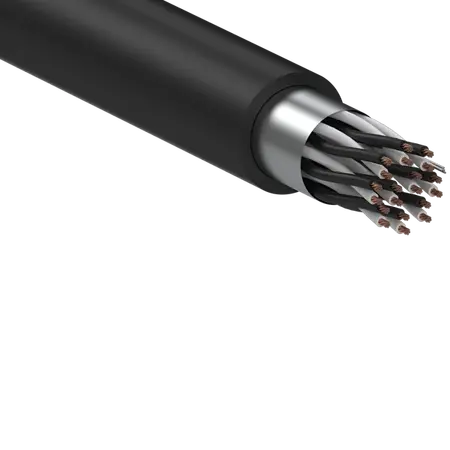

Product Name/Title: Instrumentation Cable 10 Pair 0.5mm 7/030 O/A Screened – LSZH Enviroflex Black
Brand: Eltech
SKU: ELT7310P-ENV
Alternatively Known As: 10 Pair Instrumentation Cable, LSZH Instrumentation Cable, Screened Data Cable, Enviroflex Instrumentation Cable
Technical Specifications
- Conductor Size: 0.5mm
- Conductor Construction: 7 strands of 0.30mm
- Number of Cores: 10 pairs
- Screening: Overall screen for EMI protection
- Sheath Material: LSZH Enviroflex black
- Drum Length: 500 meters
- Minimum Order Quantity: 10 meter increments
- Dimensions (H x L x W): 12mm x 500000mm x 12mm
- Weight: 2.5 kg
Key Features
- 10 pair cores with 0.5mm conductor size
- Overall screened for enhanced noise immunity
- Low Smoke Zero Halogen (LSZH) jacket for improved safety
- Black Enviroflex outer sheath for durability and environmental resistance
Professional Installation Requirements
- Installation should be performed by qualified electrical or instrumentation technicians to ensure compliance with safety and performance standards.
Applications
- Industrial instrumentation and control systems
- Data transmission in automation and process control
- Signal and communication wiring in manufacturing plants
Standards & Compliance
- Complies with AS/NZS 5000 series for electrical cables and AS/NZS 3808 for instrumentation cables
Environmental Benefits
- Low Smoke Zero Halogen (LSZH) jacket reduces toxic emissions in case of fire
- Durable construction extends cable life reducing waste
- Environmentally friendly materials used in outer sheath
Warranty Information
Standard manufacturer warranty applies. Please refer to Eltech warranty policy for details.
Available Now
The Eltech Instrumentation Cable 10 Pair 0.5mm 7/030 O/A Screened LSZH Enviroflex Black is available now for immediate purchase. Ideal for industrial and commercial instrumentation and data transmission applications.
