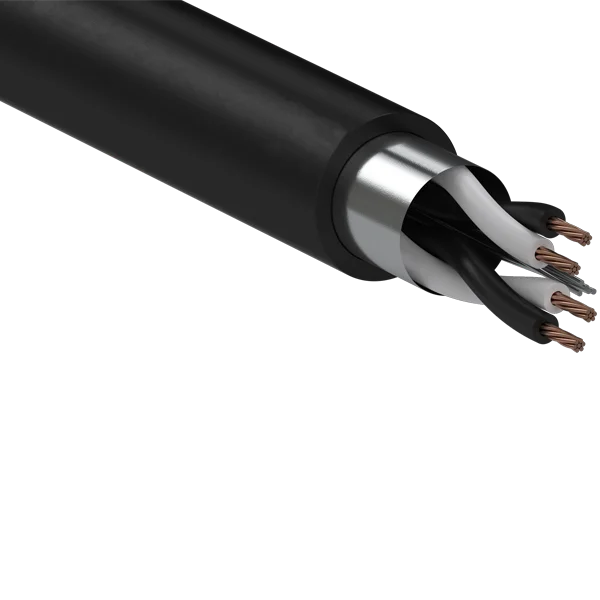

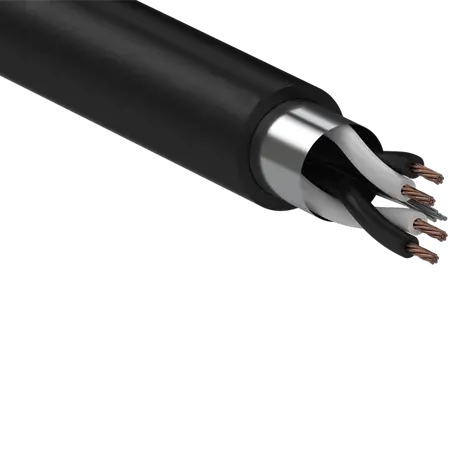

Instrumentation Cable 2 Pair 0.5mm | 0.6/1kV Rated | Overall Screened | LSZH Black | Per 50m by Eltech
Instrumentation cable with 2 pair 0.5mm conductors and 0.6/1kV voltage rating—ideal for data transmission in industrial environments. Built for safety with an overall screened design and low smoke zero halogen (LSZH) sheath, ensuring minimal toxic emissions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Instrumentation Cable 2 Pair 0.5mm 7/030 O/A Screened – 0.6/1kv Special – LSZH Black
Brand: Eltech
SKU: ELT7302P-SHV
Alternatively Known As: Instrumentation Data Cable, Screened Instrumentation Cable, LSZH Instrumentation Cable, 2 Pair Instrumentation Cable
Technical Specifications
- Conductor Size: 0.5mm
- Conductor Construction: 7/030 strands
- Number of Cores: 2 pair
- Voltage Rating: 0.6/1kV
- Screening: Overall screened
- Sheath Material: LSZH (Low Smoke Zero Halogen)
- Colour: Black
- Drum Length: 500m
- Dimensions (H x L x W): 10mm x 500000mm x 10mm
- Weight: 2.5 kg
Key Features
- 2 pair 0.5mm conductor size
- Overall screened for electromagnetic interference protection
- Low Smoke Zero Halogen (LSZH) black outer sheath
- Rated for 0.6/1kV voltage
- Available in 500m drum lengths
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician experienced with instrumentation and screened cables to ensure compliance with safety and performance standards.
Applications
- Instrumentation and control systems
- Data transmission in industrial environments
- Signal and low voltage applications requiring screened cables
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low Smoke Zero Halogen (LSZH) sheath reduces toxic emissions and smoke in case of fire, enhancing safety and environmental protection.
Warranty Information
Standard manufacturer warranty applies. Please refer to Eltech warranty terms for details.
Available Now
The Eltech Instrumentation Cable 2 Pair 0.5mm 7/030 O/A Screened LSZH Black is available now for immediate purchase. Ideal for industrial instrumentation and data transmission applications.
