Trade Discount 17%

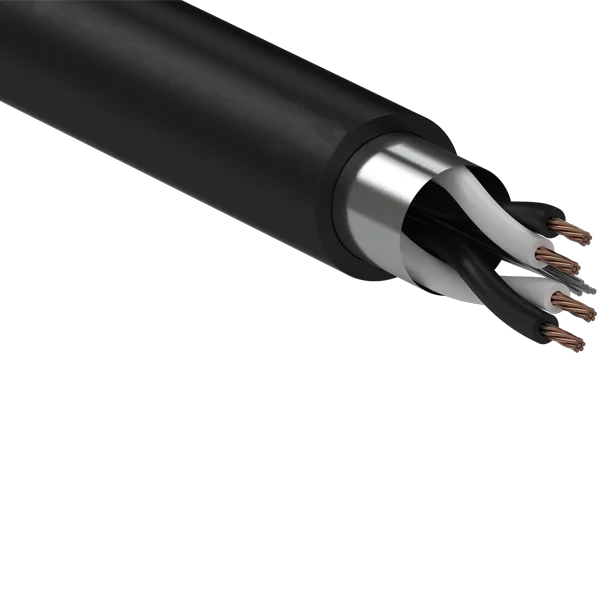

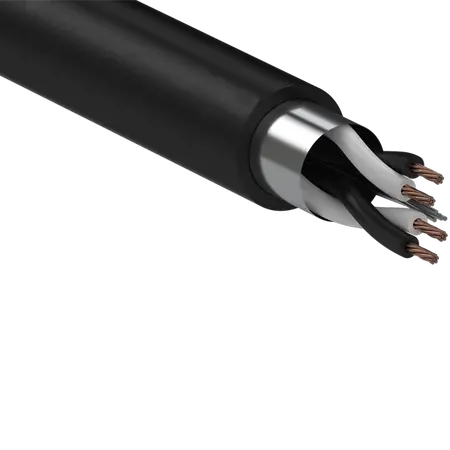

Instrumentation Cable 2 Pair 0.5mm | Overall Screened | Black PVC Sheath | 100m Drum | Per 100m by Eltech
Instrumentation cable featuring 2 pair cores with 0.5mm conductor size and overall screening for EMI protection—ideal for industrial instrumentation and control systems. Built for reliable data transmission, with a durable black PVC sheath and supplied on a convenient 100m drum.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Instrumentation Cable 2 Pair 0.5mm 7/030 O/A Screened – 100m Drum
Brand: Eltech
SKU: ELT7302P-100
Alternatively Known As: 2 Pair Screened Instrumentation Cable, 0.5mm Instrumentation Cable, Data and Instrumentation Cable 2 Pair
Technical Specifications
- Conductor Size: 0.5mm
- Conductor Construction: 7 strands of 0.30mm copper
- Number of Cores: 2 Pair
- Screening: Overall screen for EMI protection
- Sheath Colour: Black
- Drum Length: 100 meters
- Minimum Order Quantity: 100m increments
- Dimensions (H x L x W): 10mm x 100000mm x 10mm
- Weight: 2 kg
Key Features
- 2 pair cores with 0.5mm conductor size
- Overall screened for protection against electromagnetic interference
- Black PVC sheath for durability and insulation
- Supplied on a 100m drum for ease of use and installation
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician to ensure compliance with safety and performance standards.
Applications
- Industrial instrumentation and control systems
- Data transmission in automation and process control
- Signal and low voltage applications in manufacturing plants
Standards & Compliance
- Complies with AS/NZS 5000.2 for electrical cables – Polymeric insulated cables for working voltages up to and including 0.6/1 kV
Environmental Benefits
- Durable PVC insulation reduces cable replacement frequency, minimizing waste
- Screening reduces signal interference, improving system efficiency and reducing energy loss
Warranty Information
Standard manufacturer warranty applies. Please refer to Eltech for specific warranty details.
Available Now
The Eltech Instrumentation Cable 2 Pair 0.5mm Screened on a 100m drum is available now for immediate purchase. Ideal for industrial and instrumentation applications requiring reliable signal transmission.
