Instrumentation Cable 2 Pair 0.5mm | Overall Screened | LSZH Jacket | Black | Per 100m by Eltech
Instrumentation cable featuring 2 pair cores with 0.5mm conductor size and overall screening for electromagnetic interference protection. Ideal for data transmission in industrial environments, this LSZH jacketed cable ensures safety and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

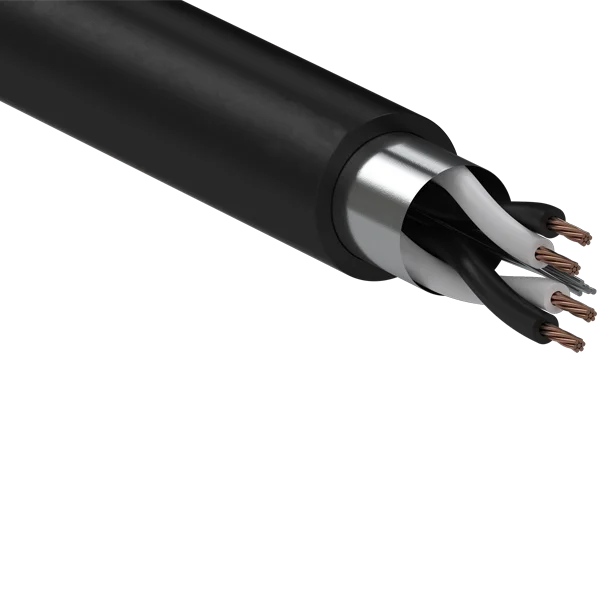

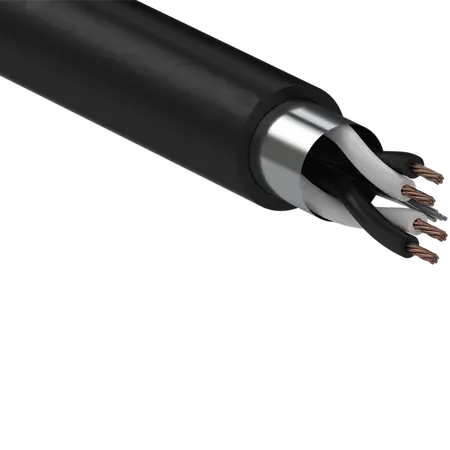

Product Name/Title: Instrumentation Cable 2 Pair 0.5mm 7/030 O/A Screened – LSZH Enviroflex Black
Brand: Eltech
SKU: ELT7302P-ENV
Alternatively Known As: Instrumentation Data Cable, Screened Instrumentation Cable, LSZH Instrumentation Cable, 2 Pair Instrumentation Cable
Technical Specifications
- Conductor Size: 0.5mm
- Conductor Construction: 7 strands of 0.30mm
- Number of Cores: 2 Pair
- Screening: Overall screen
- Sheath Material: LSZH Enviroflex
- Colour: Black
- Drum Length: 500m
- Minimum Order Quantity: 100m increments
- Dimensions (H x L x W): 8mm x 500000mm x 8mm
- Weight: 3.5 kg
Key Features
- 2 pair cores with 0.5mm conductor size
- Overall screened for protection against electromagnetic interference
- Low Smoke Zero Halogen (LSZH) jacket for enhanced safety
- Black Enviroflex outer sheath for durability and environmental resistance
Professional Installation Requirements
- Installation should be performed by qualified electrical professionals following AS/NZS wiring rules and safety standards.
Applications
- Instrumentation and control systems
- Data transmission in industrial environments
- Signal and communication wiring in manufacturing plants
Standards & Compliance
- Complies with AS/NZS 5000 series for electrical cables and wiring
- Meets AS/NZS 3808 for low smoke zero halogen cables
Environmental Benefits
- Low Smoke Zero Halogen (LSZH) jacket reduces toxic emissions in case of fire
- Durable construction extends cable life reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Eltech warranty policy for details.
Available Now
The Eltech Instrumentation Cable 2 Pair 0.5mm 7/030 O/A Screened LSZH Enviroflex Black is available for immediate purchase. Ideal for industrial instrumentation and data transmission applications.
