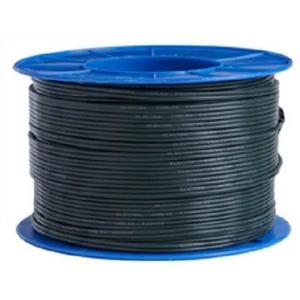

Instrumentation Cable 24/0.20 2 Pair Overall Screened | PVC Insulation | Aluminium Tape Screen | by Electra Cables
Instrumentation Cable with overall screening and plain annealed copper wire conductors—ideal for internal and external inter-connections of electronic apparatus. Built for reliable performance in computer systems, intercoms, and alarm systems, this cable features durable PVC insulation and an aluminium tape screen to reduce electromagnetic interference.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Instrumentation Cable, Screened Multi-Pair Cable, Electronic Interconnection Cable
Technical Specifications
- Conductor: Plain annealed copper wire
- Insulation: PVC V90HT or V75
- Screen: Aluminium tape screen with polyester mylar tape lapping and 7/0.20mm tinned copper drain wire
- Sheath: PVC 5V-90 or 4V-75
- Voltage rating: 240V radial thickness sheath, not for mains power connection
- Dimensions (H x L x W): 5mm x 1000mm x 10mm
- Weight: 0.15 kg
Key Features
- Overall screened multi-pair instrumentation cable
- Plain annealed copper wire conductor
- PVC V90HT or V75 insulation
- Aluminium tape screen with polyester mylar tape lapping
- 7/0.20mm tinned copper drain wire
- PVC 5V-90 or 4V-75 sheath
- Designed for 240V radial thickness sheath, not for mains power connection
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with instrumentation cable handling and screening requirements.
Applications
- Internal and external inter-connections of electronic apparatus
- Computer systems
- Intercoms
- Telemetering
- Signalling and alarm systems
Standards & Compliance
- AS/NZS 3808 – PVC Insulated Cables
- AS1125 – Conductor Standard
Environmental Benefits
- Durable PVC insulation and sheath materials extend cable life reducing waste
- Screening reduces electromagnetic interference improving system efficiency
Warranty Information
Warranty as per Electra Cables standard terms and conditions.
Available Now
Available for immediate purchase, ideal for electronic apparatus inter-connection applications.
