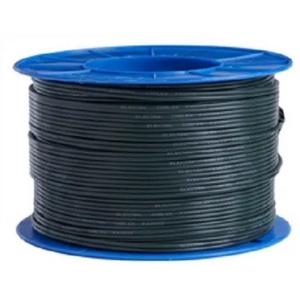

Instrumentation Cable 24/0.20 1 Pair Overall Screened | Multi-Pair Design | PVC Insulation | by Electra Cables
Instrumentation Cable 24/0.20 1 Pair Overall Screened is designed for reliable internal and external interconnections of electronic apparatus. Featuring a multi-pair design for reduced interference and PVC insulation with a high-temperature rating, this cable is perfect for applications in computer systems, intercoms, and alarm systems. Built for durability and compliance with AS1125 and AS/NZS 3808 standards, it ensures long service life and reduced replacement waste.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Instrumentation Cable, Screened Instrumentation Cable, Multi-Pair Instrumentation Cable, Electronic Interconnection Cable
Technical Specifications
- Conductor: Plain annealed copper wire
- Insulation: PVC V90HT or V75
- Screen: Aluminium tape screen with polyester mylar tape lapping and 7/0.20mm tinned copper drain wire
- Sheath: PVC 5V-90 or 4V-75
- Voltage rating: Not to be connected to mains power supplies, 240V radial thickness sheath
- Dimensions (H x L x W): 10mm x 100000mm x 10mm
- Weight: 1.2 kg
Key Features
- Overall screened multi-pair design for reduced interference
- Plain annealed copper conductor for reliable conductivity
- PVC insulation with high temperature rating (V90HT or V75)
- Aluminium tape screen with polyester mylar tape lapping and tinned copper drain wire
- PVC sheath with 240V radial thickness for enhanced durability
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician experienced with instrumentation cables to ensure proper screening and connection.
Applications
- Internal and external inter-connections of electronic apparatus
- Computer systems
- Intercoms
- Telemetering
- Signalling systems
- Alarm systems
Standards & Compliance
- AS1125 – Conductor standard
- AS/NZS 3808 – PVC insulation and sheath standard
Environmental Benefits
- PVC insulation and sheath materials are recyclable
- Designed for long service life reducing replacement waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Electra Cables for detailed warranty terms.
Available Now
Electra Cables Instrumentation Cable 24/0.20 1 Pair Overall Screened 100M is available for immediate purchase, ideal for electronic and instrumentation interconnection applications.
