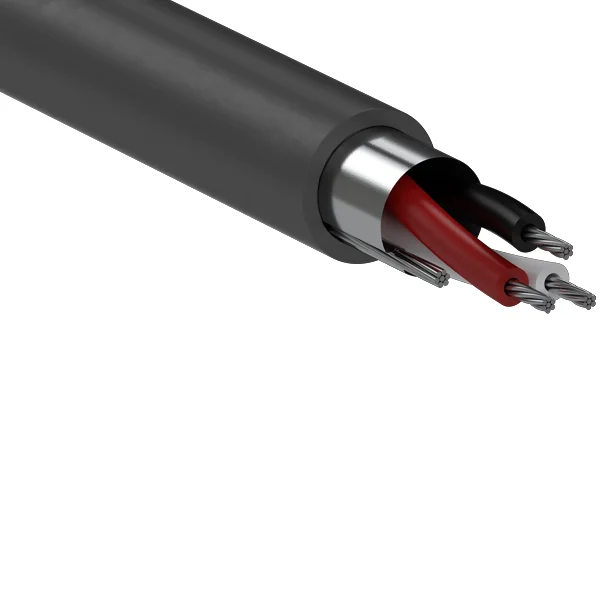

Instrumentation Cable 3 Core 0.5mm | Overall Screened | Grey PVC Sheath | 500m Drum | Per 100m by Eltech
Instrumentation cable featuring 3 cores and 0.5mm conductor size, overall screened for electromagnetic interference—ideal for industrial instrumentation and control systems. Built for reliable data transmission in automation, with a durable grey PVC outer sheath.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Instrumentation Cable 3 Core 0.5mm 7/030 O/A Screened – Grey
Brand: Eltech
SKU: ELT7303.6
Alternatively Known As: 3 Core Instrumentation Cable, Screened Instrumentation Cable 0.5mm, Grey Instrumentation Cable
Technical Specifications
- Conductor Size: 0.5mm
- Conductor Construction: 7 strands of 0.30mm wire
- Number of Cores: 3
- Screening: Overall screen to reduce electromagnetic interference
- Outer Sheath Colour: Grey
- Drum Length: 500m
- Minimum Order Quantity: 100m increments
- Dimensions (H x L x W): 6mm x 500000mm x 6mm
- Weight: 5 kg
Key Features
- 3 core cable with 0.5mm conductor size
- Overall screened for protection against electromagnetic interference
- Grey PVC outer sheath for durability and identification
- Available in 500m drum lengths with minimum order quantity of 100m increments
Professional Installation Requirements
- Installation should be performed by qualified electricians or technicians familiar with instrumentation cable standards and safety requirements.
Applications
- Industrial instrumentation and control systems
- Data transmission in automation and process control
- Signal and low voltage applications in manufacturing plants
Standards & Compliance
- Complies with AS/NZS 5000 series for electrical cables and wiring
Environmental Benefits
- PVC insulation and sheath materials are recyclable
- Screening reduces signal loss, improving energy efficiency in data transmission
Warranty Information
Standard manufacturer warranty applies. Please refer to Eltech warranty terms for details.
Available Now
The Eltech Instrumentation Cable 3 Core 0.5mm 7/030 O/A Screened – Grey is available now for immediate purchase. Ideal for industrial and automation instrumentation applications.
