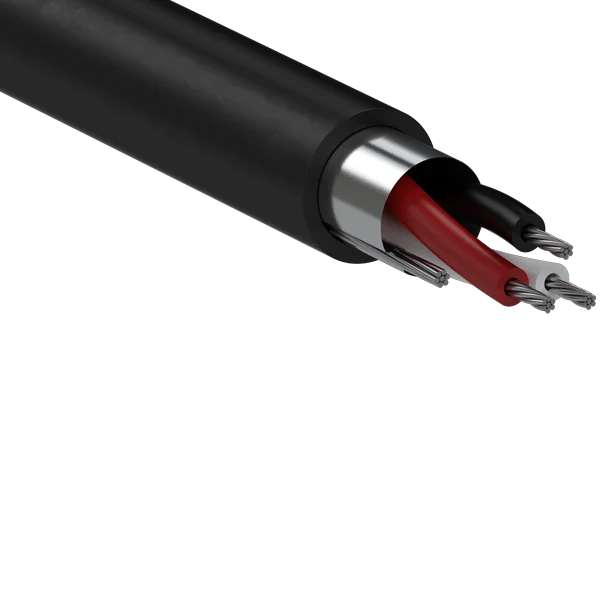

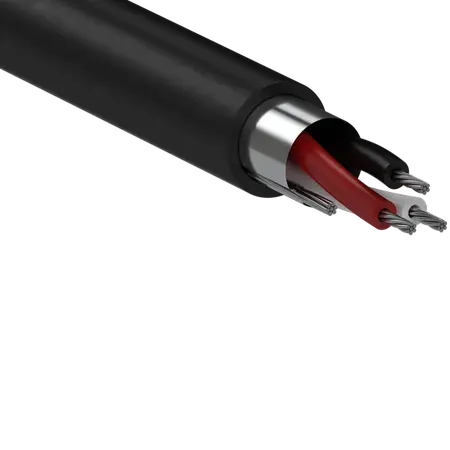

Instrumentation Cable 3 Core 0.5mm | Overall Screened | LSZH Jacket | Black | Per 100m by Eltech
Instrumentation cable featuring 3 core construction with 0.5mm conductors and overall screening—ideal for data transmission in industrial environments. Built for safety with a low smoke zero halogen (LSZH) jacket, ensuring minimal toxic emissions in case of fire.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Instrumentation Cable 3 Core 0.5mm 7/030 O/A Screened – LSZH Enviroflex Black
Brand: Eltech
SKU: ELT7303-ENV
Alternatively Known As: 3 Core Instrumentation Cable, Screened Instrumentation Cable, LSZH Instrumentation Cable, Enviroflex Instrumentation Cable
Technical Specifications
- Conductor Size: 0.5mm
- Conductor Construction: 7/030 strands
- Number of Cores: 3
- Screening: Overall screen
- Outer Sheath: LSZH Enviroflex Black
- Drum Length: 500m
- Minimum Order Quantity: 100m increments
- Dimensions (H x L x W): 6mm x 500000mm x 6mm
- Weight: 0.5 kg
Key Features
- 3 core construction with 0.5mm conductor size
- Overall screened for protection against electromagnetic interference
- Low Smoke Zero Halogen (LSZH) jacket for enhanced safety
- Black Enviroflex outer sheath for durability and environmental resistance
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with instrumentation cable standards and safety requirements.
Applications
- Instrumentation and control systems
- Data transmission in industrial environments
- Signal and low voltage applications requiring screened cables
Standards & Compliance
- Complies with AS/NZS 5000 series for electrical cables and AS/NZS 3808 for screened cables
Environmental Benefits
- Low Smoke Zero Halogen (LSZH) jacket reduces toxic emissions in case of fire
- Durable construction extends cable life reducing waste
- Environmentally friendly materials used in outer sheath
Warranty Information
Standard manufacturer warranty applies. Please refer to Eltech warranty policy for details.
Available Now
The Eltech Instrumentation Cable 3 Core 0.5mm LSZH Enviroflex Black is available for immediate purchase, ideal for industrial and instrumentation applications requiring screened cables with low smoke zero halogen properties.
