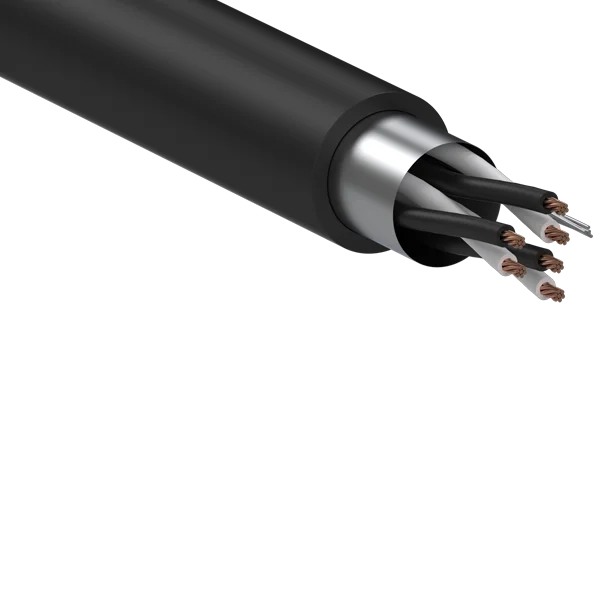

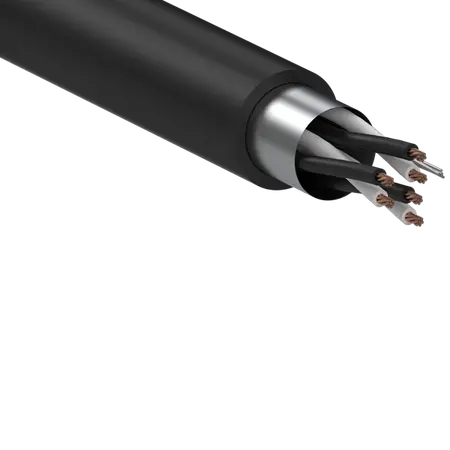

Instrumentation Cable 3 Pair 0.5mm | 0.6/1kV Rated | Overall Screened & LSZH Black | Per 10m by Eltech
Instrumentation cable with 3 pairs of 0.5mm conductors and 0.6/1kV voltage rating—ideal for instrumentation and control systems. Built for industrial environments, featuring overall screening to reduce electromagnetic interference and a low smoke zero halogen (LSZH) black sheath for safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Instrumentation Cable 3 Pair 0.5mm 7/030 O/A Screened – 0.6/1kv Special – LSZH Black
Brand: Eltech
SKU: ELT7303P-SHV
Alternatively Known As: 3 Pair Instrumentation Cable, Screened Instrumentation Cable, LSZH Instrumentation Cable, 0.5mm Instrumentation Cable
Technical Specifications
- Conductor Size: 0.5mm
- Conductor Construction: 7/0.30mm strands
- Number of Cores: 3 pairs
- Voltage Rating: 0.6/1kV
- Sheath Colour: Black
- Screening: Overall screened
- Minimum Order Quantity: 10m increments
- Drum Length: 500m
- Dimensions (H x L x W): 10mm x 500000mm x 10mm
- Weight: 5 kg
Key Features
- 3 pair 0.5mm conductor size
- Overall screened for reduced electromagnetic interference
- Low Smoke Zero Halogen (LSZH) black sheath
- Rated for 0.6/1kV voltage
Professional Installation Requirements
- Installation should be performed by a qualified electrician or cable installer following relevant electrical standards and safety regulations.
Applications
- Instrumentation and control systems
- Data transmission in industrial environments
- Signal and communication wiring in hazardous areas
Standards & Compliance
- Complies with AS/NZS 5000.1 for electrical cables
- Complies with AS/NZS 3808 for low smoke zero halogen cables
Environmental Benefits
- Low Smoke Zero Halogen (LSZH) sheath reduces toxic emissions in case of fire
- Designed to minimize environmental impact during disposal
Warranty Information
Standard manufacturer warranty applies. Please refer to Eltech warranty terms for details.
Available Now
The Eltech Instrumentation Cable 3 Pair 0.5mm 7/030 O/A Screened LSZH Black is available now for immediate purchase. Ideal for instrumentation and data transmission in industrial and commercial applications.
