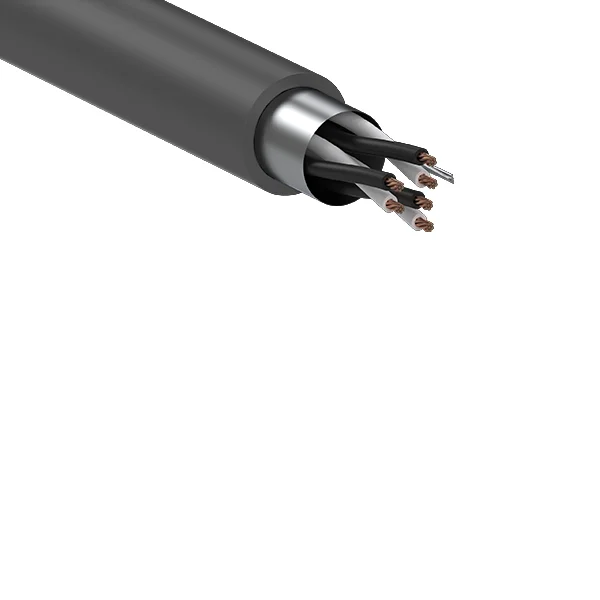

Instrumentation Cable 3 Pair 0.5mm | Overall Screened | Grey PVC Sheath | 500m Length | Per 10m by Eltech
Instrumentation cable featuring 3 pair cores with 0.5mm conductor size and overall screening for protection against electromagnetic interference. Ideal for industrial instrumentation and control systems, this durable grey PVC cable is available in 10m increments with a 500m drum length.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Instrumentation Cable 3 Pair 0.5mm 7/030 O/A Screened – Grey
Brand: Eltech
SKU: ELT7303P.6
Alternatively Known As: 3 Pair Instrumentation Cable, Screened Instrumentation Cable, 0.5mm Instrumentation Cable, Grey Instrumentation Cable
Technical Specifications
- Conductor Size: 0.5mm
- Conductor Construction: 7 strands of 0.30mm
- Number of Cores: 3 Pair
- Screening: Overall screen
- Outer Sheath Colour: Grey
- Minimum Order Quantity: 10m increments
- Drum Length: 500m
- Dimensions (H x L x W): 10mm x 500000mm x 10mm
- Weight: 3 kg
Key Features
- 3 pair cores with 0.5mm conductor size
- Overall screened for protection against electromagnetic interference
- Grey PVC outer sheath for durability and identification
- Available in 10m increments with 500m drum length
Professional Installation Requirements
- Installation should be performed by qualified electrical professionals to ensure compliance with safety and performance standards.
Applications
- Industrial instrumentation and control systems
- Data transmission in automation and process control
- Signal and low voltage applications in manufacturing plants
Standards & Compliance
- Complies with AS/NZS 5000 series for electrical cables and wiring
Environmental Benefits
- PVC insulation and sheath designed for durability reducing replacement frequency
- Screening reduces signal loss and energy waste in transmission
Warranty Information
Standard manufacturer warranty applies. Please refer to Eltech warranty policy for details.
Available Now
The Eltech Instrumentation Cable 3 Pair 0.5mm 7/030 O/A Screened – Grey is available now for immediate purchase. Ideal for industrial and instrumentation applications requiring reliable screened cabling.
