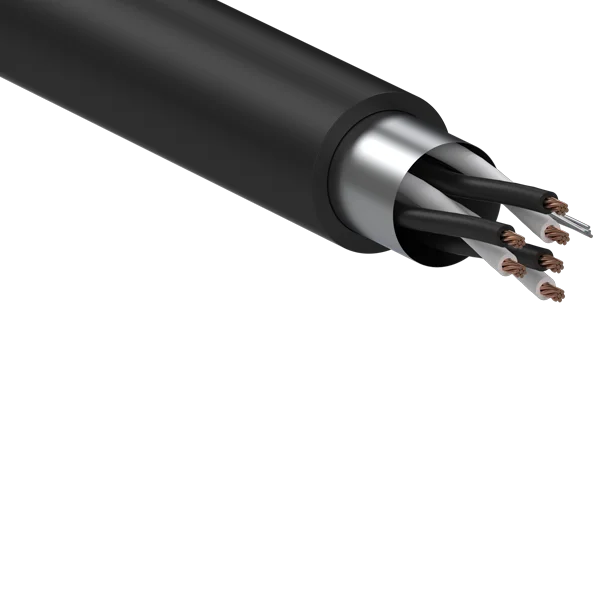

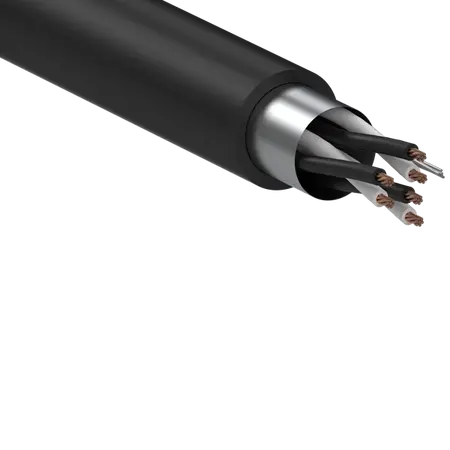

Instrumentation Cable 3 Pair 1.5mm | Overall Screened | Black PVC Sheath | Per 10m by Eltech
Instrumentation cable with 3 pair cores and 1.5mm conductor size—ideal for industrial control systems. Built for reliable data transmission, with overall screening for EMI protection and durable black PVC sheath.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Instrumentation Cable 3 Pair 1.5mm 7/050 O/A Screened
Brand: Eltech
SKU: ELT7503P
Alternatively Known As: 3 Pair Instrumentation Cable, Screened Instrumentation Cable 1.5mm, Eltech Data Cable 3 Pair
Technical Specifications
- Conductor Size: 1.5mm
- Conductor Construction: 7 strands of 0.50mm wire
- Number of Cores: 3 Pair
- Outer Sheath Colour: Black
- Screening: Overall screen for EMI protection
- Minimum Order Quantity: 10m increments
- Drum Length: 500m
- Dimensions (H x L x W): 10mm x 500000mm x 10mm
- Weight: 5 kg
Key Features
- 3 pair cores for multiple signal transmission
- 1.5mm conductor size suitable for instrumentation
- Overall screened for protection against electromagnetic interference
- Black PVC outer sheath for durability
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician experienced with instrumentation cabling to ensure proper screening and signal integrity.
Applications
- Industrial instrumentation and control systems
- Data transmission in manufacturing plants
- Signal and control wiring in automation systems
Standards & Compliance
- Complies with AS/NZS 5000 series for electrical cables and wiring
Environmental Benefits
- Durable PVC sheath reduces need for frequent replacements
- Screening reduces signal loss, improving energy efficiency in systems
Warranty Information
Standard manufacturer warranty applies. Please refer to Eltech warranty policy for details.
Available Now
The Eltech Instrumentation Cable 3 Pair 1.5mm 7/050 O/A Screened is available now for immediate purchase. Ideal for industrial and instrumentation signal transmission applications.
