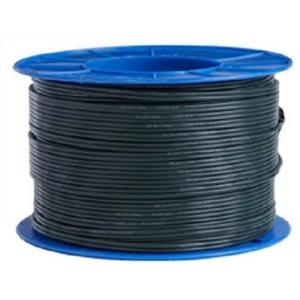

Instrumentation Cable 32/0.20 3 Core Overall Screened | PVC Insulation | Aluminium Tape Screen | by Electra Cables
Instrumentation Cable 32/0.20 3 Core Overall Screened is designed for reliable internal and external interconnections of electronic apparatus. Featuring a plain annealed copper wire conductor and durable PVC insulation, this cable is perfect for applications in computer systems, intercoms, and alarm systems. Its overall screening reduces electromagnetic interference, ensuring efficient performance in industrial and commercial settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Instrumentation Cable, Screened Multi-Core Cable, Electronic Interconnection Cable
Technical Specifications
- Conductor: Plain annealed copper wire
- Insulation: PVC V90HT or V75
- Screen: Aluminium tape screen with polyester mylar tape lapping and 7/0.20mm tinned copper drain wire
- Sheath: PVC 5V-90 or 4V-75
- Voltage: 240V radial thickness sheath, not for mains power connection
- Dimensions (H x L x W): 10mm x 100000mm x 10mm
- Weight: 2.5 kg
Key Features
- Overall screened multi-pair instrumentation cable
- Plain annealed copper wire conductor
- PVC insulation (V90HT or V75)
- Aluminium tape screen with polyester mylar tape lapping
- 7/0.20mm tinned copper drain wire
- PVC sheath (5V-90 or 4V-75)
- Voltage rating suitable for 240V radial thickness sheath, not for mains power connection
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with instrumentation cable standards and safety requirements.
Applications
- Internal and external inter-connections of electronic apparatus
- Computer systems
- Intercoms
- Telemetering
- Signalling and alarm systems
Standards & Compliance
- AS/NZS 3808 – PVC Insulation and Sheath
- AS1125 – Conductor
Environmental Benefits
- Durable PVC insulation and sheath materials extend cable life reducing waste
- Screening reduces electromagnetic interference improving system efficiency
Warranty Information
Warranty as per Electra Cables standard terms and conditions.
Available Now
Electra Cables Instrumentation Cable 32/0.20 3 Core Overall Screened 100M is available for immediate purchase, ideal for electronic apparatus interconnections in industrial and commercial applications.
