Instrumentation Cable 4 Pair 0.5mm | Overall Screened | Black PVC Sheath | 500m Length | Per 10m by Eltech
Instrumentation cable featuring 4 pairs of 0.5mm conductors and overall screening—ideal for industrial instrumentation and control systems. Built for data transmission in automation, with a durable black PVC outer sheath for enhanced protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

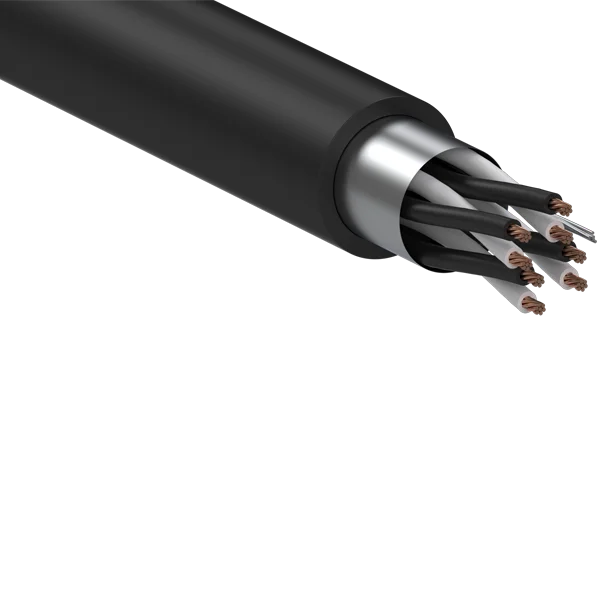

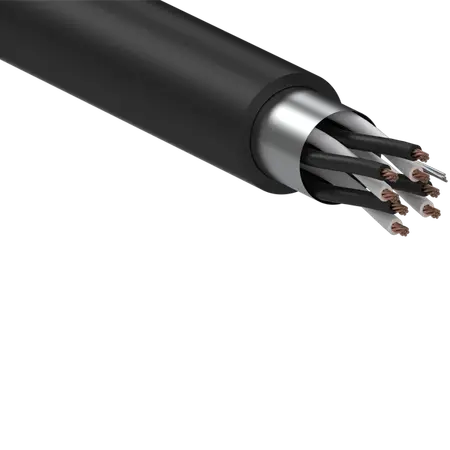

Product Name/Title: Instrumentation Cable 4 Pair 0.5mm 7/030 O/A Screened
Brand: Eltech
SKU: ELT7304P
Alternatively Known As: 4 Pair Instrumentation Cable, Screened Instrumentation Cable 0.5mm, Data Instrumentation Cable
Technical Specifications
- Conductor Size: 0.5mm
- Conductor Construction: 7 strands of 0.30mm
- Number of Cores: 4 pairs
- Screening: Overall screen
- Outer Sheath Colour: Black
- Minimum Order Quantity: 10m increments
- Drum Length: 500m
- Dimensions (H x L x W): 10mm x 500000mm x 10mm
- Weight: 3.5 kg
Key Features
- 4 pairs of 0.5mm conductors
- Overall screened for protection against electromagnetic interference
- Black PVC outer sheath for durability and protection
Professional Installation Requirements
- Installation should be performed by qualified electricians or technicians experienced with instrumentation cabling to ensure proper screening and signal integrity.
Applications
- Industrial instrumentation and control systems
- Data transmission in automation and process control
- Signal and communication wiring in manufacturing plants
Standards & Compliance
- Complies with AS/NZS 5000 series for electrical cables and wiring
Environmental Benefits
- Durable PVC sheath extends cable life reducing waste
- Screening reduces signal loss, improving energy efficiency in data transmission
Warranty Information
Standard manufacturer warranty applies. Please refer to Eltech warranty terms for details.
Available Now
The Eltech Instrumentation Cable 4 Pair 0.5mm 7/030 O/A Screened is available now for immediate purchase. Ideal for industrial and automation data transmission applications.
