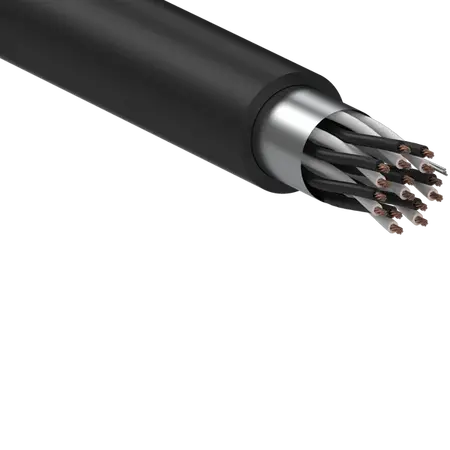

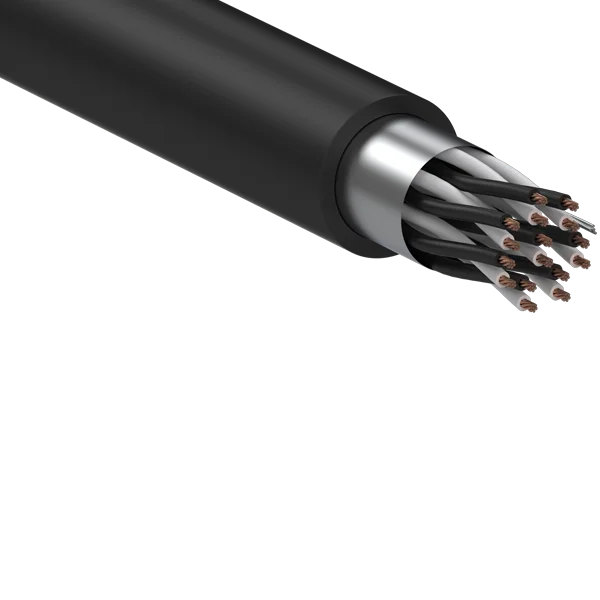

Instrumentation Cable 8 Pair 0.5mm | Overall Screened | LSZH Jacket | Black | Per 10m by Eltech
Instrumentation cable featuring 8 pairs of 0.5mm conductors and overall screening—ideal for industrial instrumentation and control systems. Built for reliable data transmission, with a low smoke zero halogen (LSZH) jacket for enhanced safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Instrumentation Cable 8 Pair 0.5mm 7/030 O/A Screened – LSZH Enviroflex Black
Brand: Eltech
SKU: ELT7308P-ENV
Alternatively Known As: 8 Pair Instrumentation Cable, Screened Instrumentation Cable, LSZH Instrumentation Cable, Enviroflex Data Cable
Technical Specifications
- Conductor Size: 0.5mm
- Conductor Construction: 7/0.30mm strands
- Number of Cores: 8 pairs
- Screening: Overall screened
- Sheath Material: LSZH Enviroflex
- Colour: Black
- Drum Length: 500m
- Minimum Order Quantity: 10m increments
- Dimensions (H x L x W): 10mm x 500000mm x 10mm
- Weight: 5 kg
Key Features
- 8 pair cores with 0.5mm conductor size
- Overall screened for electromagnetic interference protection
- Low Smoke Zero Halogen (LSZH) jacket for enhanced safety
- Black Enviroflex outer sheath for durability and environmental resistance
Professional Installation Requirements
- Installation should be performed by qualified electrical or instrumentation technicians following relevant safety standards.
Applications
- Industrial instrumentation and control systems
- Data transmission in automation and process control
- Signal and communication wiring in manufacturing plants
Standards & Compliance
- Complies with AS/NZS 5000 series for electrical cables and AS/NZS 3808 for instrumentation cables
Environmental Benefits
- Low Smoke Zero Halogen (LSZH) jacket reduces toxic emissions in case of fire
- Durable construction extends cable life reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Eltech warranty policy for details.
Available Now
The Eltech Instrumentation Cable 8 Pair 0.5mm 7/030 O/A Screened LSZH Enviroflex Black is available now for immediate purchase. Ideal for industrial and instrumentation applications requiring reliable screened cabling.
