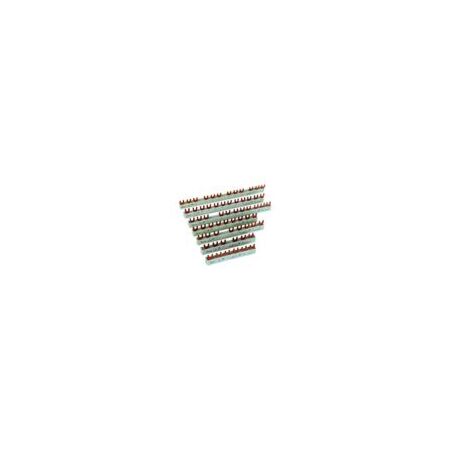

Insulated Busbar 2 Phase 80A | Compatible with 6 Devices | 415V Rated by Eaton
Insulated busbar designed for safe electrical connections, featuring a two-pole design with a rated uninterrupted current of 80A. Ideal for electrical distribution systems and compatible with 6 modular devices, it ensures reliable performance in circuit breaker installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Insulated Busbar 2 Phase 80A | Compatible with 6 Devices | 415V Rated by Eaton
Brand: Eaton
SKU: Y7-291469
Alternatively Known As: Eaton xPole Busbar 2 Phase 80A, EVG Busbar 12 Module, Residual Current Circuit Breaker Busbar
Technical Specifications
- Product Name: Eaton Moeller series busbar
- Catalog Number: 291469
- EAN: 4015082914691
- Product Length/Depth: 33 mm
- Product Height: 7.8 mm
- Product Width: 212 mm
- Product Weight: 0.093 kg
- Compliances: RoHS conform
- Used with: Busbar EVG
- Type: Busbar EVG
- Features: Insulated
- Accessory/spare part type: Busbar for residual current circuit breakers, combined residual current/power circuit breaker, miniature circuit breaker
- Electric connection type: Fork
- Rated surge voltage: 4 KV
- Rated uninterrupted current (Iu): 80 A
- Suitable for number of devices: 6
- Number of poles: Two-pole
- Color: Other
- Rated short-time withstand current (Icw): 0 kA
- Cross section: 16 mm²
- Number of modular spacings: 12
- Number of phases: 2
- Pitch dimensions: 0 mm
- Rated operational voltage (Ue) - max: 415 V
- Rated conditional short-circuit current (Iq): 25 kA
- Functions: Busbar
- Suitable for: 6 devices
- Dimensions (H x L x W): 7.8mm x 33mm x 212mm
- Weight: 0.093 kg
Key Features
- Insulated busbar for safe electrical connections
- Two-pole design suitable for 2 phases
- Rated uninterrupted current of 80A
- Compatible with 6 modular devices
- Rated operational voltage up to 415V
- Rated conditional short-circuit current of 25kA
- Electric connection type: Fork
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper connection.
Applications
- Electrical distribution systems
- Busbar connections for residual current circuit breakers
- Power circuit breaker installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant, ensuring reduced hazardous substances
- Durable insulated design reduces risk of electrical faults and waste
Warranty Information
Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Eaton Moeller series xPole EVG-16/2PHAS/12MODUL Busbar is available for immediate purchase, ideal for electrical distribution and circuit breaker busbar applications.
