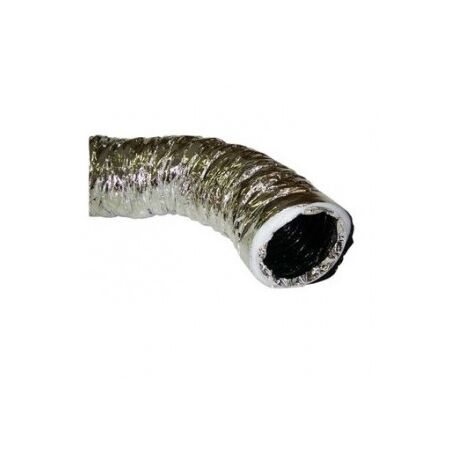

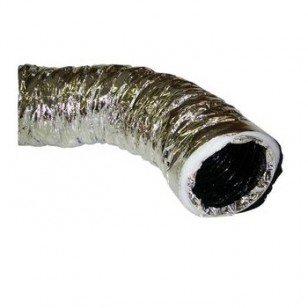

Insulated Duct R1.5 | 150mm Diameter | 6m Length | Flexible HVAC Ducting | by Repelec
Insulated duct R1.5 with a 150mm diameter and 6m length is perfect for HVAC applications, providing energy efficiency and reducing heat loss. Designed for both residential and commercial use, this flexible ducting minimizes condensation and supports better indoor air quality, making it an ideal choice for air conditioning and ventilation systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Insulated Duct R1.5 | 150mm Diameter | 6m Length | Flexible HVAC Ducting | by Repelec
Brand: Repelec
SKU: AIRAWFX150-R1.5
Alternatively Known As: Flexible Insulated Duct, HVAC Ducting, R1.5 Duct, 150mm Insulated Duct, Air Conditioning Duct, Ventilation Duct
Technical Specifications
- Diameter: 150mm
- Length: 6m
- Thermal Insulation: R1.5
- Construction: Multi-layer aluminium/polyester laminate with polyester insulation
- Operating Temperature Range: -10°C to +80°C
- Maximum Air Velocity: 30 m/s
- Maximum Working Pressure: 2500 Pa
- Fire Rated to AS 4254.1
- Dimensions (H x L x W): 150mm x 6000mm x 150mm
- Weight: 2.5 kg
Key Features
- Flexible insulated ducting for HVAC applications
- R1.5 thermal insulation for energy efficiency
- 150mm diameter suitable for standard duct connections
- 6 metre length for extended reach
- Reduces heat loss and condensation
- Lightweight and easy to install
Professional Installation Requirements
- Installation should be performed by a qualified HVAC technician to ensure compliance with building codes and optimal system performance.
Applications
- Residential and commercial HVAC systems
- Ventilation for air conditioning and heating
- Exhaust and fresh air ducting in buildings
- Suitable for ceiling, wall, and floor installations
Standards & Compliance
- Complies with AS/NZS 4254.1 for ductwork for air-handling systems in buildings
Environmental Benefits
- Improves energy efficiency by reducing heat loss
- Minimizes condensation, reducing risk of mold growth
- Supports better indoor air quality
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Repelec Insulated Duct R1.5 150mm x 6m is available for immediate purchase. Ideal for residential and commercial HVAC installations requiring efficient, insulated air distribution.
