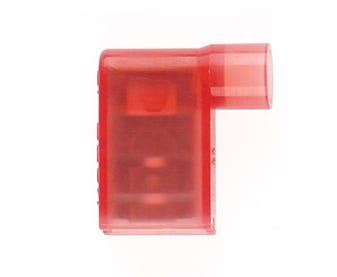

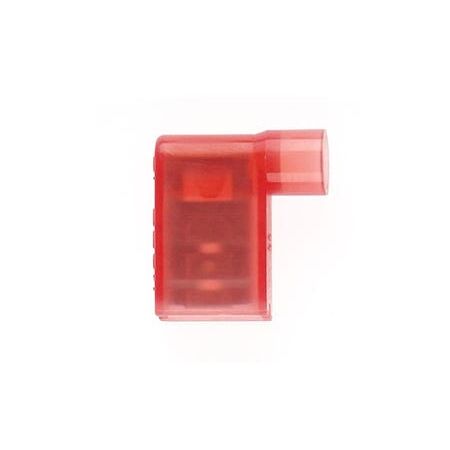

Insulated Flag Quick Connect Terminal 6.4 x 0.8mm | 300V | Red by Cabac
Insulated flag quick connect terminal with 6.4 x 0.8mm dimensions and 300V rating—ideal for industrial and commercial electrical installations. Built for secure connections, with easy conductor entry and full insulation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Fully Ins.Flag Quick Connect 6.4 X 0.8mm Red
Brand: Cabac
SKU: FIFQC1.25-6.4
Alternatively Known As: Insulated Flag Terminal, Quick Connect Terminal, Pre-Insulated Terminal, Electrical Quick Connect, Fully Insulated Terminal
Technical Specifications
- Conductive Material (Quick Connect Range): Brass 30% Zinc, 70% Copper
- Tensile Strength: 580 MPa
- Ductile Rating: 6% min
- Final Metal State: Annealed
- Working Temperature: Pre-Insulate -40°C to +105°C, Brass 145°C, Tin plated 160°C
- Electroplating Material: Tin with 99.9% Tin Content, Plating Thickness 2.5 microns
- Insulation Material: PVC except nylon 6 or nylon 66 for FIQC
- Breakdown Voltage: Minimum 1.5kV
- Insulation Resistance: Above 100 meg ohms
- Working Voltage: Up to 300V AC/DC
- Total Conductivity: 99.5% IACS
- Total Resistivity: 1.738 micro-ohm cm
- Dimensions (H x L x W): 0.8mm x 20mm x 6.4mm
- Weight: 0.1 kg
Key Features
- High quality product meeting international standards
- Funnel entry terminals allow easy conductor entry, minimizing substandard crimps
- Long term electrical integrity
- Translucent nylon in fully insulated quick connector reduces installation errors
- Voltage rating 300V
- Full technical backup including quality assurance
- Conforms to AS 3169 and AS 4437
Professional Installation Requirements
- Terminals should be crimped onto the conductor using a quality crimper designed for this specific terminal type to ensure secure and reliable connections.
Applications
- Electrical wiring connections in switchgear, contactors, terminal blocks
- Industrial and commercial electrical installations requiring secure quick connect terminals
- Automotive and machinery electrical systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce need for frequent replacements, minimizing waste
- High electrical integrity reduces energy loss in connections
Warranty Information
Warranty details available upon request; product backed by full technical support and quality assurance.
Available Now
The Cabac Fully Insulated Flag Quick Connect Terminal 6.4 x 0.8mm Red is available now for immediate purchase. Ideal for electrical and power connectivity applications requiring reliable and safe terminal connections.
