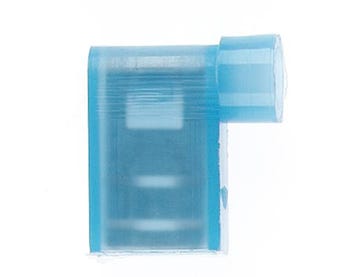

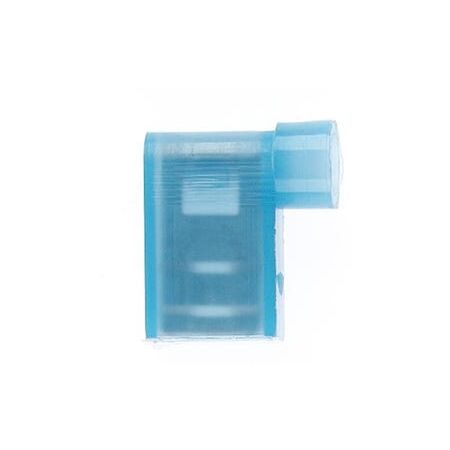

Insulated Flag Quick Connect Terminal 6.4 x 0.8mm | Blue | High Quality | AS 3169 by Cabac
Insulated flag quick connect terminal with 6.4 x 0.8mm dimensions and high-quality construction—ideal for electrical wiring connections. Built for reliability, with full insulation and easy conductor entry, conforming to AS 3169 and AS 4437 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Fully Ins.Flag Quick Connect 6.4 X 0.8mm Blue
Brand: Cabac
SKU: FIFQC2-6.4
Alternatively Known As: Insulated Flag Terminal, Quick Connect Terminal, Pre-Insulated Terminal, Electrical Quick Connect, Blue Flag Terminal
Technical Specifications
- Conductive Material (Quick Connect Range): Brass 30% Zinc, 70% Copper
- Tensile Strength: 580 MPa
- Ductile Rating: 6% min
- Final Metal State: Annealed
- Working Temperature: Pre-Insulate -40°C to +105°C, Brass 145°C, Tin plated 160°C
- Electroplating Material: Tin with 99.9% Tin Content
- Plating Thickness: 2.5 microns
- Insulation Material: PVC except nylon 6 or nylon 66 for FIQC
- Breakdown Voltage: 1.5kV (min)
- Insulation Resistance: Above 100 meg ohms
- Working Voltage: Up to 300V AC/DC
- Torque Recommendations: Metric 8.8 tensile grade hardware
- Conformant Standards: AS4437, AS3169 Australia
- Dimensions (H x L x W): 0.8mm x 20mm x 6.4mm
- Weight: 0.1 kg
Key Features
- High quality product meeting International Standards
- Funnel entry terminals allow easy conductor entry, minimising substandard crimps
- Long term electrical integrity
- Translucent nylon in fully insulated quick connector reduces installation errors
- Voltage rating 300V
- Full technical backup including QA
- Conforms to AS 3169 and AS 4437
Professional Installation Requirements
- Terminals should be crimped onto the conductor with a quality crimper designed for the specific terminal type. Professional installation by a qualified electrician is recommended.
Applications
- Electrical wiring connections in switchgear
- Contactors and terminal blocks
- General electrical and power connectivity requiring quick connect terminals
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements
- Improved electrical integrity reduces energy loss
- Conforms to international standards ensuring safe and efficient use
Warranty Information
Warranty against manufacturing defects as per Cabac standard policy.
Available Now
The Cabac Fully Insulated Flag Quick Connect Terminal 6.4 x 0.8mm Blue is available now for immediate purchase. Ideal for electrical and power connectivity applications requiring reliable quick connect terminals.
