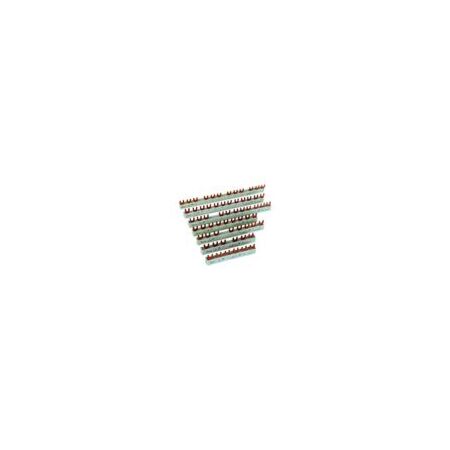

Insulated Four-Pole Busbar | 80A Uninterrupted Current | 25kA Short-Circuit Rating | 8 Modular Spacings by Eaton
Insulated four-pole busbar with a rated uninterrupted current of 80A and a 25kA short-circuit rating—ideal for electrical distribution systems. Built for safety and efficiency, with 8 modular spacings for versatile applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Insulated Four-Pole Busbar | 80A Uninterrupted Current | 25kA Short-Circuit Rating | 8 Modular Spacings by Eaton
Brand: Eaton
SKU: Y7-291475
Alternatively Known As: EVG Busbar, Four-pole Busbar, Insulated Busbar for Circuit Breakers, Modular Busbar 8 Modules
Technical Specifications
- Product Name: Eaton Moeller series busbar
- Rated surge voltage: 4 KV
- Rated uninterrupted current (Iu): 80 A
- Number of poles: Four-pole
- Rated operational voltage (Ue) - max: 415 V
- Rated conditional short-circuit current (Iq): 25 kA
- Cross section: 16 mm²
- Number of modular spacings: 8
- Electric connection type: Fork
- Functions: Busbar
- Suitable for: 2 devices
- Dimensions (H x L x W): 13.3mm x 33mm x 138mm
- Weight: 0.083 kg
Key Features
- Insulated busbar for safety
- Four-pole design
- Rated uninterrupted current of 80A
- Rated conditional short-circuit current of 25kA
- Electric connection type: Fork
- Suitable for 2 devices
- Cross section of 16 mm²
- 8 modular spacings
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper connection.
Applications
- Electrical distribution systems
- Busbar connections for residual current circuit breakers
- Miniature circuit breaker busbar connections
- Combined residual current/power circuit breaker busbar connections
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant, ensuring reduced hazardous substances in manufacturing
- Durable insulated design reduces risk of electrical faults and waste
Warranty Information
Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Eaton Moeller series xPole EVG-16/4PHAS/8MODUL busbar is available for immediate purchase, ideal for electrical distribution and circuit breaker busbar applications.
