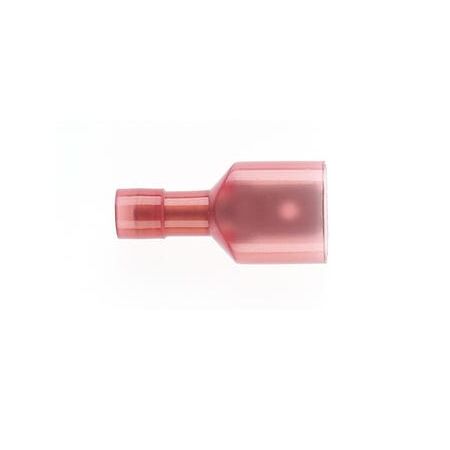

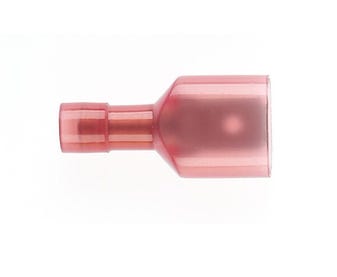

Insulated Male Terminal 6.4x0.8mm | Double Grip | 300V Rated | Red by Cabac
Insulated male terminal with 6.4x0.8mm dimensions and double grip—ideal for electrical wiring connections. Built for reliability, with 300V rating and full insulation to minimize installation errors.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Fully Ins.Male Tab 6.4 X 0.8mm Dg
Brand: Cabac
SKU: FIMT1.25-6.4DG
Alternatively Known As: Insulated Male Terminal 6.4x0.8mm, Pre-Insulated Quick Connect Terminal, Double Grip Male Terminal, Electrical Insulated Terminal Connector
Technical Specifications
- Conductive Material (Quick Connect Range): Brass 30% Zinc, 70% Copper
- Tensile Strength: 580 MPa
- Ductile Rating: 6% min
- Final Metal State: Annealed
- Working Temperature: Pre-Insulate -40°C to +105°C, Brass 145°C, Tin plated 160°C
- Conductive Material (Except Quick Connect Range): Copper 99.9% Pure
- Tensile Strength: 200 MPa
- Ductile Rating: 35% min
- Final Metal State: Fully Annealed
- Oxygen Content: 50ppm max
- Total Conductivity: 99.5% IACS
- Total Resistivity: 1.738 micro-ohm cm
- Electroplating Material: Tin
- Tin Content: 99.9%
- Other Metals: Lead + Antimony
- Plating Thickness: 2.5 microns
- Insulation Material: PVC (except nylon 6 or nylon 66 for FIQC)
- Breakdown Voltage: 1.5kV (min)
- Insulation Resistance: Above 100 meg ohms
- Working Voltage: Up to 300V AC/DC
- Torque Recommendations: Metric 8.8 tensile grade hardware, torque varies by thread diameter
- Nominal Pull Out Force varies by wire size, e.g., 0.25mm wire pull out force 4.6 kg (45 N)
- Dimensions (H x L x W): 0.8mm x 15mm x 6.4mm
- Weight: 0.1 kg
Key Features
- High quality product meeting international standards
- Funnel entry terminals allow easy conductor entry, minimizing substandard crimps
- Long term electrical integrity
- Translucent nylon in fully insulated quick connector reduces installation errors
- Voltage rating 300V
- Full technical backup including quality assurance
- Conforms to AS 3169 and AS 4437
Professional Installation Requirements
- Terminals should be crimped onto the conductor with a quality crimper designed for the specific terminal type to ensure proper installation and electrical integrity.
Applications
- Electrical wiring connections in switchgear
- Contactors and terminal blocks
- General electrical and power connectivity applications requiring insulated terminals
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS 3169
- AS 4437
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- High electrical efficiency reduces energy loss in connections
Warranty Information
Warranty details available upon request; product meets international quality standards.
Available Now
The Cabac Fully Insulated Male Terminal 6.4 x 0.8mm Double Grip Red DG is available now for immediate purchase. Ideal for electrical and power connectivity applications requiring reliable insulated terminals.
