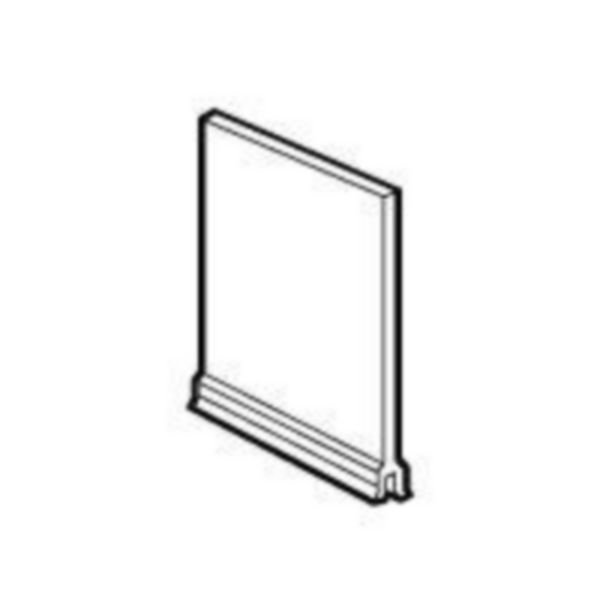

Insulated Shields for DPX 1250/1600 | Set of 3 | IEC 60947-3 Compliant | Visible Isolation | @Each of 1 | by Legrand
Insulated shields designed for DPX 1250/1600 isolating switches ensure safe isolation with visible contact separation. This set of 3 shields is compatible with switches rated 800 to 1600 A, featuring cage terminal connections and an integrated padlock for enhanced safety. Ideal for electrical switchboards and modular circuit breaker applications, these shields conform to IEC 60947-3 standards, making them a reliable choice for industrial and commercial installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Insulated Shields for DPX 1250/1600 | Set of 3 | IEC 60947-3 Compliant | Visible Isolation | @Each of 1 | by Legrand
Brand: Legrand
SKU: 026266
Alternatively Known As: Insulation shields for DPX 1250/1600, DPX 1250/1600 insulating shields, Legrand DPX insulated shields
Technical Specifications
- Designed for DP - IS1600 isolating switches rated 800 to 1600 A
- Isolating switches provide on-load circuit breaking with visible isolation
- Connection via cage terminals
- Padlock integrated in handle for secure isolation
- Supplied with terminal shields
- Conforms to IEC 60947-3
- Category of use AC 23 A
- Accepts electrical auxiliaries
- Mountable on plate in XL³ enclosures
- Dimensions (H x L x W): 200mm x 100mm x 150mm
- Weight: 0.5 kg
Key Features
- Set of 3 insulated shields designed for DPX 1250/1600 isolating switches
- Compatible with DP - IS1600 isolating switches rated 800 to 1600 A
- Ensures safe isolation with visible contact separation
- Connection with cage terminals for secure wiring
- Padlock integrated in the handle for safety
- Supplied with terminal shields for additional protection
- Conforms to IEC 60947-3 standards
- Category of use AC 23 A
- Accepts electrical auxiliaries
- Can be mounted on plate in XL³ enclosures
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with safety standards and proper integration with DPX 1250/1600 isolating switches.
Applications
- Electrical switchboards and power cabinets
- Modular switches and circuit breakers protection
- Industrial and commercial electrical installations requiring isolating switches
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances electrical safety reducing risk of faults and electrical hazards
- Supports durable and reliable electrical installations minimizing waste and replacements
Warranty Information
Legrand offers a standard warranty covering manufacturing defects; please refer to official documentation for specific terms.
Available Now
Legrand Insulated Shields (3) for DPX 1250/1600 are available for immediate purchase, ideal for enhancing safety and insulation in electrical switchboards and modular circuit breaker applications.
