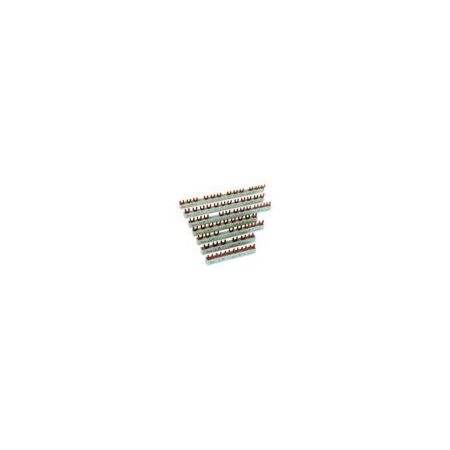

Insulated Single-Pole Busbar | 80A Current | 25kA Short-Circuit | 12 Modular Spacings by Eaton
Insulated single-pole busbar with a rated uninterrupted current of 80A and a short-circuit rating of 25kA—ideal for electrical distribution systems. Built for safety and efficiency, it accommodates 12 devices and features a durable design for reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Insulated Single-Pole Busbar | 80A Current | 25kA Short-Circuit | 12 Modular Spacings by Eaton
Brand: Eaton
SKU: Y7-291466
Alternatively Known As: Eaton xPole Busbar, EVG Busbar 1 Phase, 12 Module Busbar, Residual Current Busbar, Power Circuit Breaker Busbar
Technical Specifications
- Product Length/Depth: 29 mm
- Product Height: 4.5 mm
- Product Width: 210 mm
- Rated uninterrupted current (Iu): 80 A
- Rated conditional short-circuit current (Iq): 25 kA
- Rated operational voltage (Ue) - max: 415 V
- Rated surge voltage: 4 kV
- Number of poles: Single-pole
- Cross section: 16 mm²
- Number of modular spacings: 12
- Electric connection type: Fork
- Suitable for 12 devices
- Insulated busbar
- Dimensions (H x L x W): 4.5mm x 29mm x 210mm
- Weight: 0.064 kg
Key Features
- Insulated busbar for safety
- Single-pole design
- Rated uninterrupted current of 80A
- Rated conditional short-circuit current of 25kA
- Suitable for 12 modular spacings and 12 devices
- Electric connection type: Fork
- Rated operational voltage up to 415V
- Rated surge voltage of 4kV
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper connection.
Applications
- Electrical distribution systems
- Busbar connections for combined residual current/power circuit breakers
- Miniature circuit breaker busbar connections
- Residual current circuit breaker busbar connections
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant, ensuring reduced hazardous substances
- Durable insulated design reduces risk of electrical faults and waste
Warranty Information
Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Eaton Moeller series xPole EVG-16/1PHAS/12MODUL busbar is available for immediate purchase, ideal for electrical distribution and circuit breaker busbar applications.
