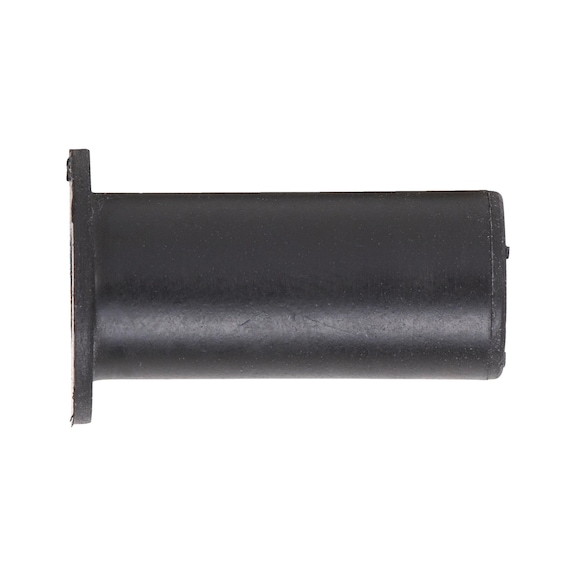

Insulating Rivet | Vibration Damping & Noise Dampening | M5 Thread | Dome Head | by Wurth
The Insulating Rivet is designed for reliable fastening in automotive and industrial applications, featuring a vibration-damping and noise-dampening function. With a detachable and electrically insulating connection, it ensures air and moisture-tight seals, making it ideal for various materials and environments, from -30°C to +80°C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Thread type x nominal diameter (D): M5
- Head diameter (d1): 12.5 mm
- Outer diameter (d2): 9.6 mm
- Length (l1): 14.1 mm
- Head height (k1): 0.9 mm
- Min./max. grip range (s1): 0.4-4.9 mm
- Material: Chloroprene with brass insert
- Max. drill hole diameter: 9.9 mm
- Min. tightening torque: 0.35 Nm
- Min./max. tightening torque: 0.35-0.5 Nm
- Min. processing temperature: -30°C
- Max. processing temperature: 80°C
- Shore A hardness: 60
- Head type: Dome head
- Dimensions (H x L x W): 14.1mm x 14.1mm x 12.5mm
- Weight: 0.1 kg
Key Features
- Detachable and electrically insulating rivet connection
- Vibration and noise-damping function
- Dual function as thread carrier or fastener
- Air and moisture-tight connection
- Ozone-resistant
- Suitable for various materials
- Installation temperature range from -30°C to +80°C
Professional Installation Requirements
- Installation should be performed by trained personnel familiar with rivet fastening techniques to ensure proper torque and secure fastening.
Applications
- Fastening metal and plastic connections in automotive, industrial, and construction applications
- Suitable for use in blind or pocket holes
- Ideal for vibration and noise damping fastening needs
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable material reduces need for frequent replacements
- Ozone-resistant properties enhance longevity and reduce waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth detachable electrically insulating rivet connection is available for immediate purchase, ideal for industrial and automotive fastening applications.
