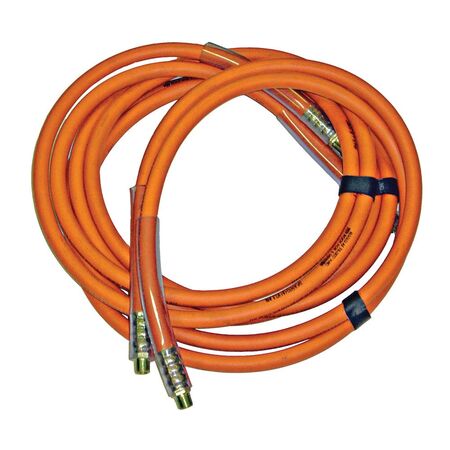

Insulating Rubber Hose Set 12 Feet Non-Conductive & Pressure Tested Cabac
The Insulating Rubber Hose Set is designed for medium pressure hydraulic systems, featuring a 12-foot length and non-conductive flexible rubber construction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Maximum Working Pressure: 2250 psi / 15.5 MPa
- Minimum Burst Pressure: 9000 psi / 62.1 MPa
- Pressure tested to 3375 psi and held for 5 minutes
- Maximum leakage of 100 microamps/ft at 75 KV for 3 minutes
- Fitted with couplers and hose fittings as per specifications
- Dimensions (H x L x W): 50mm x 3658mm x 50mm
- Weight: 2.5 kg
Key Features
- Twinline non-conductive flexible rubber hose
- Pressure tested to 3375 psi and held for 5 minutes
- Electrically tested to state or utility regulations
- Fitted with couplers and hose fittings to specifications
- Available in other lengths upon request
Professional Installation Requirements
- Installation by trained personnel familiar with hydraulic and electrical safety standards is recommended to ensure proper use and compliance.
Applications
- Medium pressure hydraulic systems requiring shock hazard protection
- Situations where electrical non-conductivity is essential
- Industrial and utility applications needing electrically tested hoses
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Reduces risk of electrical hazards, enhancing workplace safety
- Durable construction minimizes frequent replacements and waste
Warranty Information
Standard manufacturer warranty applies. Please contact Cabac for specific warranty details.
Available Now
The Cabac Insulating Rubber Hose Set 12 Feet with Couplers is available for immediate purchase, ideal for hydraulic systems requiring electrical insulation and shock hazard protection.
