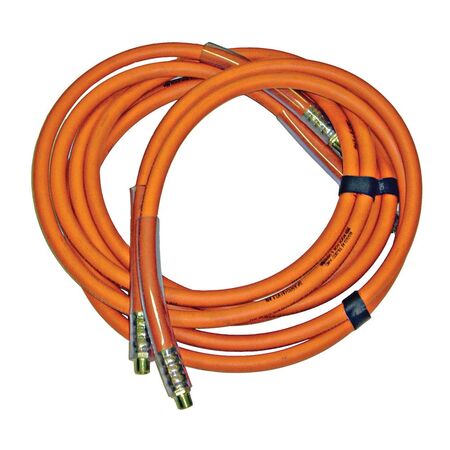

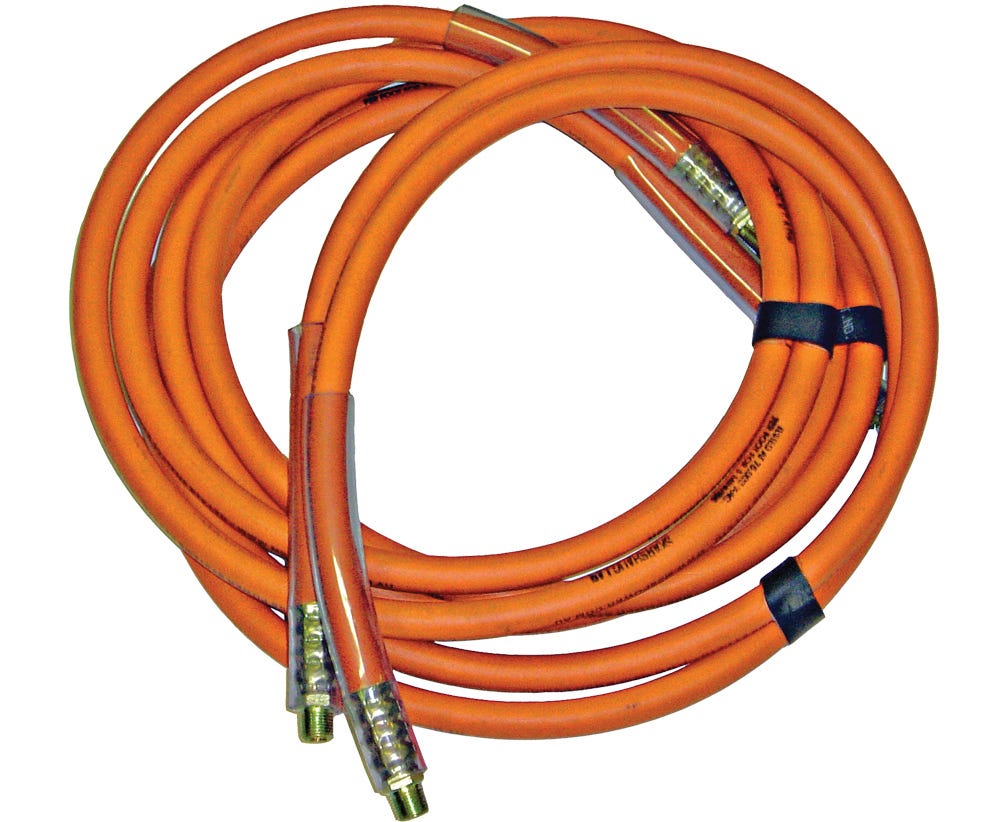

Insulating Rubber Hose Set | 8 Feet Length | Non-Conductive & Pressure Tested | Couplers Included | @KIT of 1 | by Cabac
The Insulating Rubber Hose Set is designed for medium pressure hydraulic systems, featuring a non-conductive flexible rubber hose that withstands up to 3375 psi. Ideal for applications requiring electrical insulation and shock hazard protection, this set includes couplers and hose fittings, ensuring compliance with safety standards for industrial and utility use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Insulating Rubber Hose Set | 8 Feet Length | Non-Conductive & Pressure Tested | Couplers Included | @KIT of 1 | by Cabac
Brand: Cabac
SKU: MSS-NCR66668-FC
Alternatively Known As: Non-conductive Hydraulic Hose Set, Insulating Hydraulic Hose, Electrical Insulation Rubber Hose
Technical Specifications
- Maximum Working Pressure: 2250 psi / 15.5 MPa
- Minimum Burst Pressure: 9000 psi / 62.1 MPa
- Pressure tested to 3375 psi for 5 minutes
- Maximum leakage: 100 microamps/ft at 75 KV for 3 minutes
- Length: 8 feet (2438 mm)
- Includes couplers and hose fittings
- Dimensions (H x L x W): 50mm x 2438mm x 50mm
- Weight: 1.5 kg
Key Features
- Twinline non-conductive flexible rubber hose
- Pressure tested to 3375 psi and held for 5 minutes
- Electrically tested to state or utility regulations
- Fitted with couplers and hose fittings to specifications
- Available in other lengths on request
Professional Installation Requirements
- Installation by trained personnel familiar with hydraulic and electrical safety standards is recommended.
Applications
- Medium pressure hydraulic systems requiring shock hazard protection
- Situations where electrical non-conductivity is essential
- Industrial and utility applications needing electrically tested hoses
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Reduces risk of electrical hazards, enhancing workplace safety
- Durable construction minimizes replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies; please contact Cabac for details.
Available Now
The Cabac Insulating Rubber Hose Set 8 Feet with Couplers is available for immediate purchase, ideal for hydraulic systems requiring electrical insulation and shock hazard protection.
