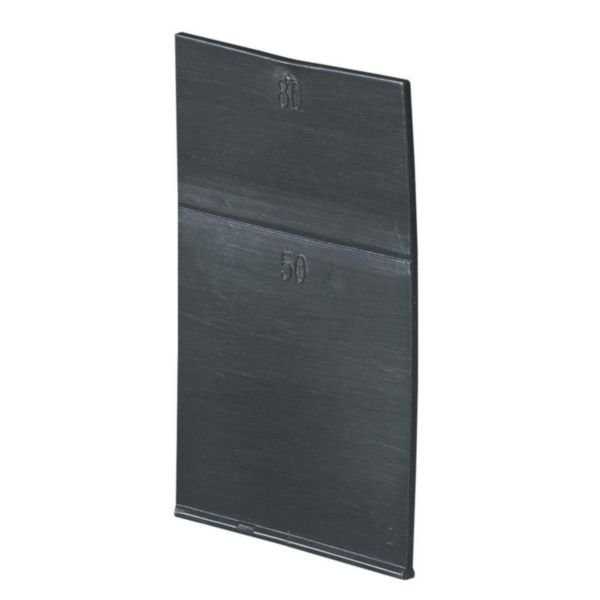

Insulating Shields for DRX 3P MCCBs | Set of 2 | M8 Terminals Included | by Legrand
Insulating shields designed for DRX 3P MCCBs enhance electrical safety by isolating connections between poles. This set of 2 shields is compatible with DRX 250 thermal magnetic MCCBs and includes M8 terminals and fixing screws for secure installation. Ideal for low-voltage electrical lines, these shields ensure compliance with IEC 60947-2 standards, making them perfect for electrical switchboards and power cabinets.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Insulating Shields for DRX 3P MCCBs | Set of 2 | M8 Terminals Included | by Legrand
Brand: Legrand
SKU: 027181
Alternatively Known As: MCCB insulating shields, DRX 3P pole isolators, circuit breaker insulating barriers
Technical Specifications
- Designed for DRX 250 thermal magnetic MCCBs rated 125 to 250 A
- Set includes 2 insulating shields for 3-pole breakers
- Includes M8 terminals and fixing screws for secure installation
- Fixed thermal and magnetic protection
- Conforms to IEC 60947-2 for low-voltage switchgear and controlgear
- Dimensions (H x L x W): 100mm x 20mm x 50mm
- Weight: 0.1 kg
Key Features
- Set of 2 insulating shields for 3-pole DRX MCCBs
- Isolates the connection between each pole to enhance safety
- Compatible with DRX 250 thermal magnetic MCCBs
- Includes M8 terminals and fixing screws
- Conforms to IEC 60947-2 standards
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper fitting and compliance with electrical safety standards.
Applications
- Used in low-voltage electrical lines for switching, control, isolation, and protection
- Suitable for DRX 3P thermal magnetic MCCBs from 125 to 250 A
- Ideal for electrical switchboards and power cabinets
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances electrical safety reducing risk of short circuits and electrical faults
- Supports reliable operation of energy-efficient electrical systems
Warranty Information
Standard Legrand warranty applies, typically 1 year against manufacturing defects.
Available Now
Legrand Insulating Shields (2) for DRX 3P MCCBs are available for immediate purchase, ideal for enhancing safety in electrical switchboards and power cabinets.
