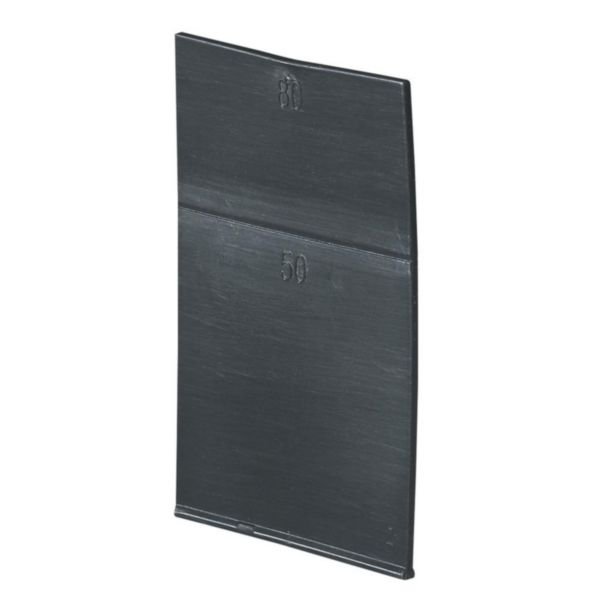

Insulating Shields for DRX 4P | Set of 3 | M8 Terminals Included | IEC 60947-2 Compliant | @Each of 1 | by Legrand
Insulating shields for DRX 4P are designed to enhance safety in low-voltage electrical lines. This set of 3 shields isolates connections between each pole, ensuring compliance with IEC 60947-2 standards. Ideal for DRX 250 thermal magnetic MCCBs, these shields come with M8 terminals and fixing screws for secure installation, making them perfect for industrial and commercial electrical switchboards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Insulating Shields for DRX 4P | Set of 3 | M8 Terminals Included | IEC 60947-2 Compliant | @Each of 1 | by Legrand
Brand: Legrand
SKU: 027182
Alternatively Known As: MCCB insulating shields, DRX 4P pole isolators, circuit breaker insulating barriers
Technical Specifications
- Designed for DRX 250 thermal magnetic MCCBs from 125 to 250 A
- Set includes 3 insulating shields for 4-pole breakers
- Includes M8 terminals and fixing screws for secure installation
- Fixed thermal and magnetic protection
- Conforms to IEC 60947-2 standard for low-voltage switchgear and controlgear
- Dimensions (H x L x W): 100mm x 150mm x 50mm
- Weight: 0.1 kg
Key Features
- Set of 3 insulating shields for 4-pole DRX MCCBs
- Isolates the connection between each pole to enhance safety
- Compatible with DRX 250 thermal magnetic MCCBs
- Includes M8 terminals and fixing screws
- Conforms to IEC 60947-2 standards
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper fitting and compliance with safety standards.
Applications
- Used in low-voltage electrical lines for switching, control, isolation, and protection
- Suitable for DRX 4P thermal magnetic moulded case circuit breakers (MCCBs) from 125 to 250 A
- Ideal for industrial and commercial electrical switchboards and power cabinets
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Enhances electrical safety reducing risk of short circuits and electrical faults
- Supports longer equipment lifespan by preventing electrical damage
Warranty Information
Standard Legrand warranty applies; typically 1 year against manufacturing defects.
Available Now
Legrand Insulating Shields (3) for DRX 4P are available for immediate purchase, ideal for enhancing safety in electrical switchboards and power cabinets.
