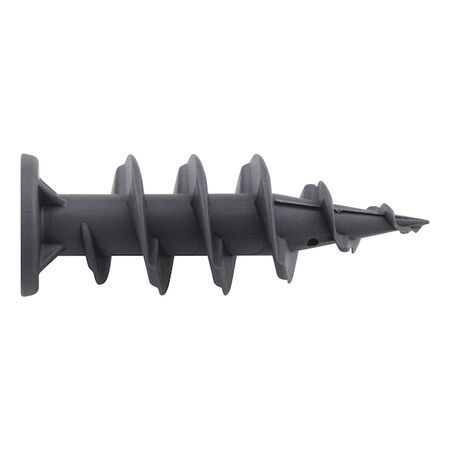

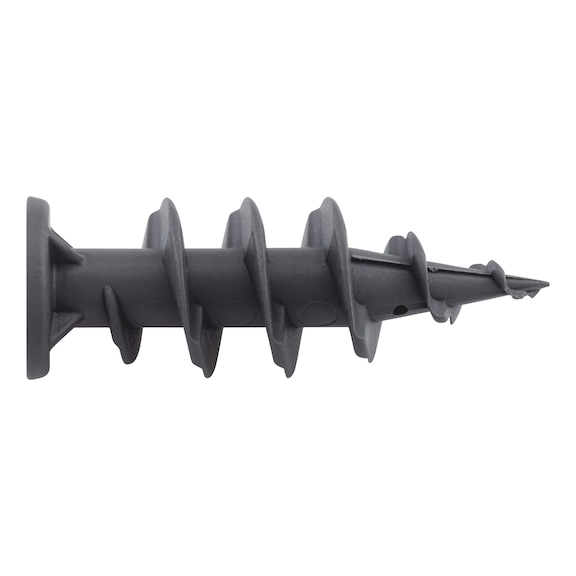

Insulation Anchor SHARK® ISO | 50mm Length | Polypropylene Glass Fiber | Anthracite Grey | @Pack of 100 | by Wurth
The Insulation Anchor SHARK® ISO is designed for fastening lightweight fixtures in pressure-resistant ETICS insulating panels. With a 50mm length and made from durable polypropylene glass fiber, it ensures quick and easy installation without pre-drilling. Ideal for sustainable wood fibre insulation materials, this anchor prevents thermal bridges, enhancing energy efficiency in building applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Anchor length: 50 mm
- Embedding depth: 50 mm
- Material: Polypropylene glass fiber reinforced (PP GF)
- Colour: Anthracite grey RAL 7016
- Type description: W-ID
- Applicable temperature range: -20°C to +100°C
- Dimensions (H x L x W): 50mm x 50mm x 10mm
- Weight: 0.1 kg
Key Features
- Works in all common compression-resistant insulating materials
- Screws in perfectly without pre-drilling the insulation material
- Avoids the need for complicated, stand-off installation for lightweight fastening
- For thin plaster layers < 4 mm, no pre-drilling is required
- Quick and inexpensive mounting without the formation of thermal bridges
- Resistant to rotting, weathering and ageing (high quality PP)
- For processing with cordless drill driver
- Suitable for pre-positioned installation
- Attachment via mechanical interlock
- Applicable temperature range: -20°C to +100°C
Professional Installation Requirements
- Installation with included setting tool recommended. Use ASSY-D screws for secure fastening. Professional installation advised for optimal performance.
Applications
- Fastening lightweight fixtures in pressure-resistant ETICS insulating panels
- Ideal for sustainable wood fibre insulation materials
- Suitable for signs on insulated façades
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Supports sustainable wood fibre insulation materials
- Prevents thermal bridges, improving energy efficiency of buildings
- Durable and resistant to weathering, reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Insulation Anchor SHARK® ISO 100 PCS is available now for immediate purchase. Ideal for construction and building applications involving ETICS insulation panels and sustainable insulation materials.
