Insulation Piercing Connector 150-150mm² | Live Installation | Corrosion Resistant | ABC Cable Compatible by Cabac

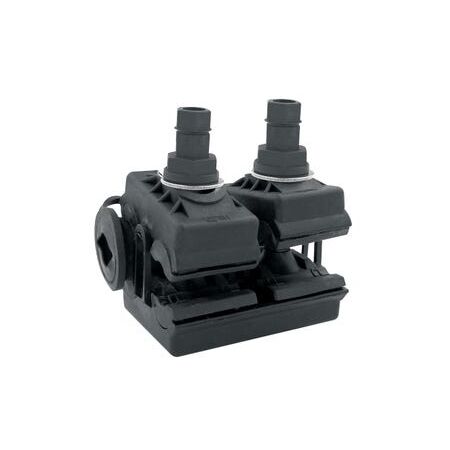

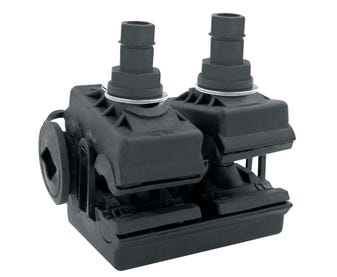

Cabac IPC150/150 Insulation Piercing Connector designed for tapping off low voltage XLPE insulated Aerial Bundled Cable (ABC) using a unique insulation piercing technique. Suitable for aluminium and copper conductors, corrosion resistant and can be installed live.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ins. Piercing Conn. 150-150mm2
Brand: Cabac
SKU: IPC150/150
Alternatively Known As: Insulation Piercing Connector, IPC Connector, ABC Cable Tap Connector, Live Tap Connector, Insulation Piercing Tap Connector
Technical Specifications
- Suitable for main cable range: 150-150 mm²
- Suitable for branch cable range: 150-35 mm²
- Installation using 13 mm spanner
- Hex nut shears at correct torque for secure connection
- Compatible with low voltage XLPE insulated Aerial Bundled Cable (ABC)
- Suitable for Aluminium and Copper Class 2 conductors
- Can be installed fully live without removing insulation
- Dimensions (H x L x W): 50mm x 150mm x 100mm
- Weight: 0.3 kg
Key Features
- Unique insulation piercing technique for tapping off ABC cables
- Can be installed fully live without removing insulation
- Hex nut shears at correct torque for secure connection
- Suitable for both aluminium and copper conductors
- Corrosion resistant and suitable for all weather applications
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure correct torque and safe live connection.
Applications
- Tapping off low voltage XLPE insulated Aerial Bundled Cable (ABC)
- Suitable for Aluminium and Copper Class 2 conductors
- Outdoor and all weather electrical power connectivity
- Overhead line electrical connections and accessories
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables safe live connections reducing downtime and waste
- Corrosion resistant materials extend product life and reduce replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac Insulation Piercing Connector IPC150/150 is available now for immediate purchase. Ideal for overhead line electrical power connectivity and ABC cable tapping applications.
