Insulation Piercing Connector 150-35mm² | Live Installation | Corrosion Resistant | Easy Connection by Cabac

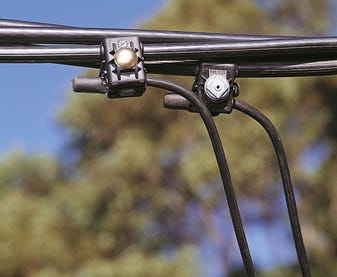

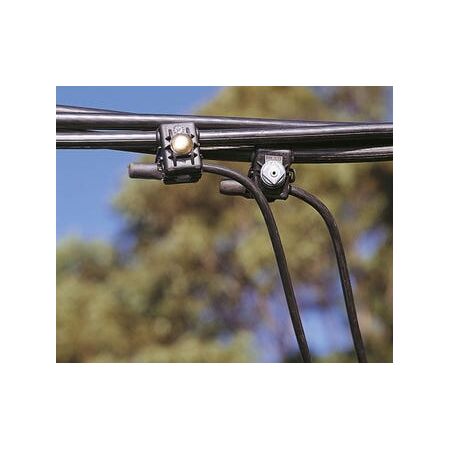

Cabac Insulation Piercing Connector 150-35mm2 is designed for tapping off low voltage XLPE insulated Aerial Bundled Cable (ABC) using a unique insulation piercing technique, suitable for live installation and all weather conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ins. Piercing Conn. 150-35mm2
Brand: Cabac
SKU: IPC150/35
Alternatively Known As: IPC Connector, Insulation Piercing ABC Connector, Live Tap Connector, Low Voltage ABC Connector
Technical Specifications
- Main Cable Range: 150 mm²
- Branch Cable Range: 35 mm²
- Suitable for low voltage XLPE insulated Aerial Bundled Cable (ABC)
- Installation torque controlled by hex nut shear
- Installation tool: 13 mm spanner
- Compatible with Aluminium and Copper Class 2 conductors
- Can be installed fully live without removing insulation
- Dimensions (H x L x W): 40mm x 120mm x 80mm
- Weight: 0.2 kg
Key Features
- Unique insulation piercing technique for easy connection without removing insulation
- Can be installed fully live, enhancing safety and reducing downtime
- Hex nut shears at correct torque for secure and reliable connection
- Suitable for both aluminium and copper conductors
- Corrosion resistant for all weather applications
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure correct torque and safe live connection.
Applications
- Tapping off low voltage XLPE insulated Aerial Bundled Cable (ABC)
- Suitable for Aluminium and Copper Class 2 conductors
- Outdoor overhead line electrical connections
- All weather and corrosion resistant applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces need for cable stripping, minimizing waste and potential damage
- Enables live installation, reducing downtime and energy consumption during maintenance
- Corrosion resistant materials extend product life, reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac Insulation Piercing Connector 150-35mm2 is available now for immediate purchase. Ideal for overhead line electrical connections in residential, commercial, and industrial applications.
