Insulation Piercing Connector 150-95mm² | Live Installation | Corrosion Resistant | Easy Connection by Cabac

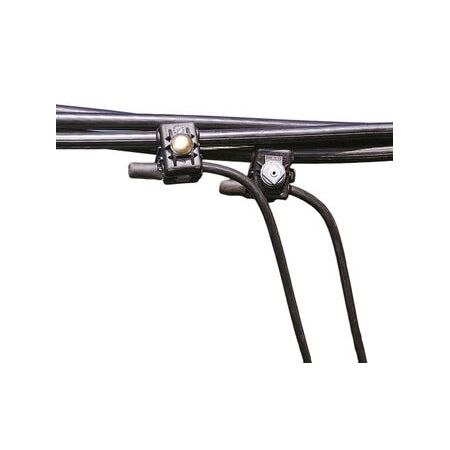

Cabac Insulation Piercing Connector 150-95mm2 designed for tapping low voltage XLPE insulated ABC cables using a unique piercing technique, allowing live installation and corrosion resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ins. Piercing Conn. 150-95mm2
Brand: Cabac
SKU: IPC150/95
Alternatively Known As: IPC Connector, Insulation Piercing Tap Connector, ABC Cable Connector, Live Tap Connector
Technical Specifications
- Suitable for main cable range: 150-35 mm²
- Suitable for branch cable range: 95-35 mm²
- Compatible with Aluminium and Copper Class 2 conductors
- Installation torque controlled by hex nut shearing
- Installation requires 13 mm spanner
- Insulated connector allowing live installation without removing insulation
- Dimensions (H x L x W): 40mm x 120mm x 80mm
- Weight: 0.3 kg
Key Features
- Unique insulation piercing technique for easy connection without removing insulation
- Can be installed fully live, enhancing safety and reducing downtime
- Hex nut shears at correct torque to ensure proper installation
- Corrosion resistant and suitable for all weather applications
- Compatible with a range of main and branch cable sizes
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure correct torque and safe live connection.
Applications
- Tapping off low voltage XLPE insulated Aerial Bundled Cable (ABC)
- Suitable for Aluminium and Copper Class 2 Conductors
- Outdoor overhead line electrical connections
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces need for cable stripping and additional insulation materials
- Enables safe live connections minimizing power interruptions and waste
- Corrosion resistance extends product life reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac Insulation Piercing Connector 150-95mm2 is available now for immediate purchase. Ideal for overhead line electrical connections and ABC cable tapping.
