Insulation Piercing Connector 35-35mm2 | Live Installation | Corrosion Resistant | Easy Connection by Cabac

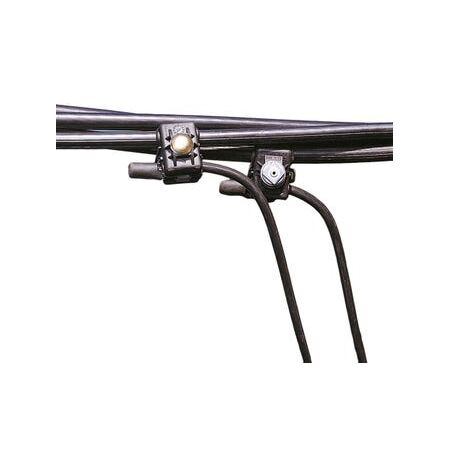

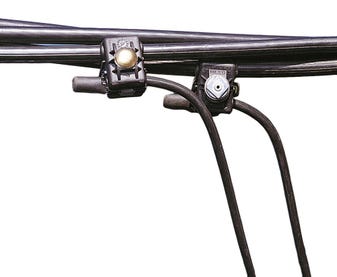

Cabac Insulation Piercing Connector 35-35mm2 is designed for tapping off low voltage XLPE insulated Aerial Bundled Cable (ABC) using a unique insulation piercing technique, allowing live installation without removing insulation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ins. Piercing Conn. 35-35mm2
Brand: Cabac
SKU: IPC35/35
Alternatively Known As: IPC Connector, Insulation Piercing Connector, ABC Cable Connector, Live Tap Connector
Technical Specifications
- Main Cable Range: 35mm2
- Branch Cable Range: 35-6mm2
- Installation Tool: 13 mm spanner
- Installation: Fully live installation possible
- Material: Corrosion resistant
- Suitable Conductors: Aluminium and Copper Class 2
- Torque Control: Hex nut shears at correct torque
- Dimensions (H x L x W): 30mm x 80mm x 50mm
- Weight: 0.1 kg
Key Features
- Unique insulation piercing technique for easy connection
- Can be installed fully live without removing insulation
- Hex nut shears at correct torque for secure connection
- Suitable for all weather applications and corrosion resistant
- Compatible with main cable range 35mm2 and branch cable range 35-6mm2
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure correct torque and safe live connection.
Applications
- Tapping off low voltage XLPE insulated Aerial Bundled Cable (ABC)
- Suitable for Aluminium and Copper Class 2 conductors
- Outdoor and all weather electrical connections
- Overhead line electrical connectivity and accessories
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces need for cable stripping, minimizing waste
- Corrosion resistant for long-lasting outdoor use, reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty policy for details.
Available Now
The Cabac Insulation Piercing Connector 35-35mm2 is available now for immediate purchase. Ideal for overhead line electrical connectivity and ABC cable tapping applications.
