Insulation Piercing Connector 95-35mm² | Live Tap Installation | Corrosion Resistant | Easy Connection by Cabac

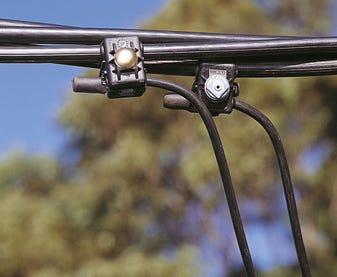

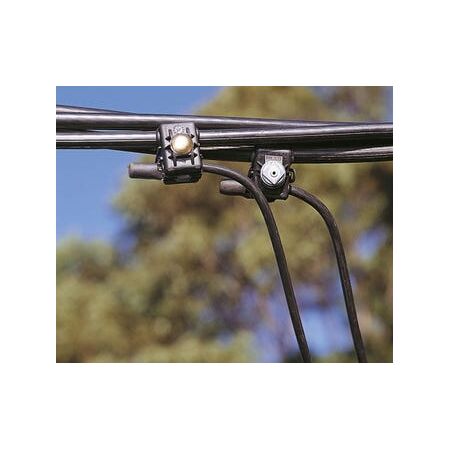

Cabac Insulation Piercing Connector (IPC) 95-35mm2 enables safe, live tapping of low voltage XLPE insulated Aerial Bundled Cables using a unique piercing technique, suitable for aluminium and copper conductors in outdoor applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ins. Piercing Conn. 95-35mm2
Brand: Cabac
SKU: IPC95/35
Alternatively Known As: Insulation Piercing Connector, IPC Connector, ABC Cable Connector, Live Tap Connector
Technical Specifications
- Suitable for main cable range: 95 mm²
- Suitable for branch cable range: 35 mm²
- Compatible with XLPE insulated Aerial Bundled Cable (ABC)
- Installation torque controlled by hex nut shearing
- Installation requires 13 mm spanner
- Suitable for aluminium and copper conductors
- Corrosion resistant for all weather applications
- Dimensions (H x L x W): 50mm x 150mm x 100mm
- Weight: 0.2 kg
Key Features
- Unique insulation piercing technique for easy connection without removing insulation
- Can be installed fully live, enhancing safety and reducing downtime
- Hex nut shears at correct torque for secure and reliable connection
- Suitable for all weather applications and corrosion resistant
- Compatible with a range of cable sizes for main and branch cables
Professional Installation Requirements
- Installation should be performed by a qualified electrician or trained professional to ensure correct torque and safe live connection.
Applications
- Tapping off low voltage XLPE insulated Aerial Bundled Cable (ABC)
- Suitable for aluminium and copper conductors
- Outdoor overhead line electrical connections
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces need for cable stripping, minimizing waste
- Enables efficient live connections reducing power outage times
- Corrosion resistant materials extend product lifespan, reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac Insulation Piercing Connector 95-35mm2 is available now for immediate purchase. Ideal for overhead line electrical connections and live tapping of ABC cables.
