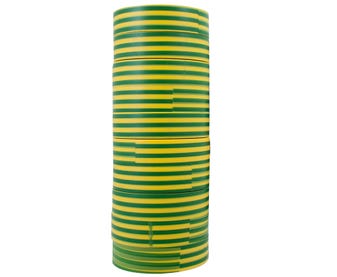

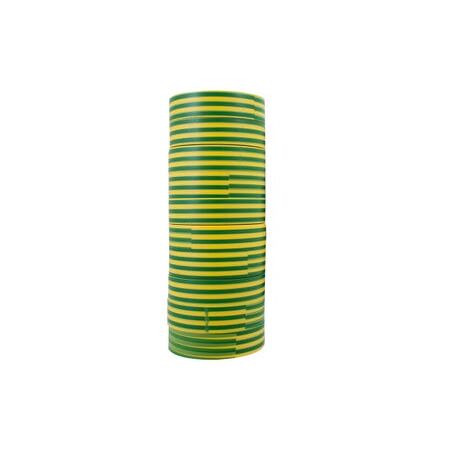

Insulation Tape Yellow Green | 10 Rolls | PVC | Flame Retardant by Cabac
Insulation tape with PVC material and flame retardant properties—ideal for electrical insulation and wire harnessing. Built for durability, with strong adhesion and resistance to weather, oil, and acids.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Insulation Tape Yellow Green 10 Rolls
Brand: Cabac
SKU: ITYG/10
Alternatively Known As: Electrical Insulation Tape, PVC Electrical Tape, Wire Harness Tape, Identification Tape, Yellow Green Electrical Tape
Technical Specifications
- Material Composition: PVC
- Thickness: 0.135 mm
- Adhesive Type: Rubber
- Adhesion Strength: >0.32 kg/19mm
- Elongation: >150%
- Dielectric Strength: 40 kV/mm
- Tensile Strength: >4.7 kg/25mm
- Flame Retardant: Yes
- Resistance: Weather, oil, and acid resistant
- Operating Temperature Range: 0 to 90°C
- Dimensions (H x L x W): 20mm x 100mm x 19mm
- Weight: 0.1 kg
Key Features
- Standard grade electrical PVC insulation tape with 0.135mm thickness
- Rated up to 600V for reliable electrical insulation
- Durable elasticity and strong adhesion with rubber adhesive
- Flame retardant and resistant to weather, oil, and acids
- Operates effectively within a temperature range of 0 to 90°C
- Meets RoHS and REACH compliance standards
Professional Installation Requirements
- No special professional installation required; ensure surface is clean, dry, and free from grease or dust before application.
Applications
- Identification and coding of electrical components for easy identification
- Harnessing: Bundling and securing wires and cables within electrical systems
- General wire wrapping for secure, protective, and durable wire management
- Basic insulation to ensure safe insulation for electrical connections and components
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS and REACH compliance ensures restriction of hazardous substances and safer chemical use
- Durable and long-lasting tape reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Cabac Insulation Tape Yellow Green 10 Rolls is available now for immediate purchase. Ideal for electrical insulation, wire harnessing, and identification in industrial and electrical applications.
