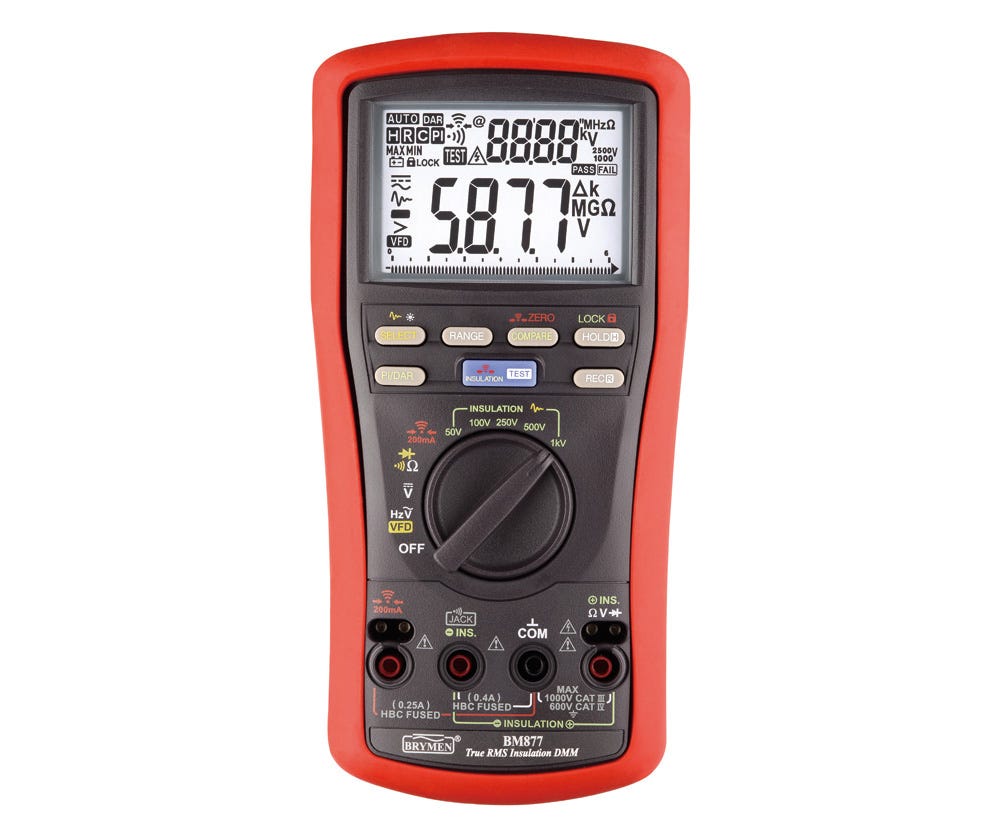

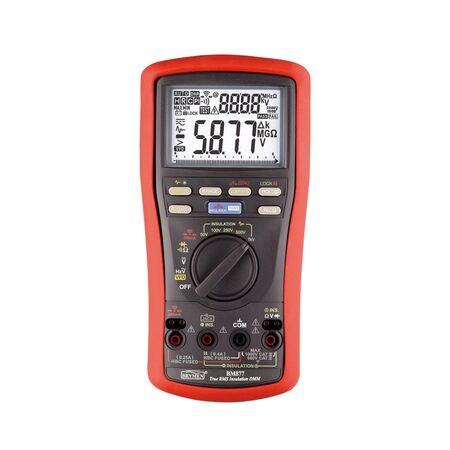

Insulation Tester & DMM Continuity 50V to 1kV | 3 5/6 Digit Dual LCD | True RMS Measurement | @Each of 1 | by Cabac
The Insulation Tester & DMM Continuity 50V to 1kV is designed for professional electrical testing, featuring test voltages of 50V, 100V, 250V, 500V, and 1000V. With a 3 5/6 digit dual LCD display and true RMS measurement capabilities, it ensures accurate readings for insulation resistance and earth continuity testing. Ideal for qualified electricians, this device is built for safety and compliance in industrial and commercial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Insulation Test Voltages: 50V, 100V, 250V, 500V, 1000V
- Earth Continuity Test Current: 110mA and >220mA
- Display: 3 5/6 digit, 6000 count dual LCD with analogue bargraph and backlight
- Safety Rating: EN61010 CATIII 1000V, CAT IV 600V AC and DC
- True RMS AC Voltage Measurement
- VFD AC Voltage Detection
- Beepjack Input Alarm
- Polarisation Index (PI) and Dielectric Absorption Ratio (DAR)
- Data Hold, Min/Max Record
- Auto Power Off after 20 minutes
- Dimensions (H x L x W): 90mm x 50mm x 180mm
- Weight: 0.5 kg
Key Features
- Insulation tester with test voltages of 50V, 100V, 250V, 500V, and 1000V
- Earth continuity tester with 110mA and >220mA current options
- 3 5/6 digit, 6000 count dual display LCD with analogue bargraph and backlight
- True RMS AC measurement and VFD AC voltage detection
- Beepjack input alarm for live voltage presence
- Polarisation Index (PI) and Dielectric Absorption Ratio (DAR) measurements
- PASS/FAIL result with 12 selectable preset values
- Earth continuity live voltage presence inhibitor if voltage > 2V
- Insulation test live voltage presence inhibitor if voltage > 30V
- Data hold and record min/max readings
- Auto power off after 20 minutes of inactivity
Professional Installation Requirements
- Use by qualified electricians or trained professionals is recommended to ensure accurate testing and safety compliance.
Applications
- Electrical installation testing
- Insulation resistance measurement
- Earth continuity testing
- Professional electrician use
- Industrial and commercial electrical maintenance
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Energy-efficient design reduces battery consumption during testing
- Durable construction extends product lifespan, reducing electronic waste
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Cabac Brymen BM877 Insulation Tester & DMM Continuity 50V to 1kV is available now for immediate purchase. Ideal for professional electrical testing and maintenance applications.
