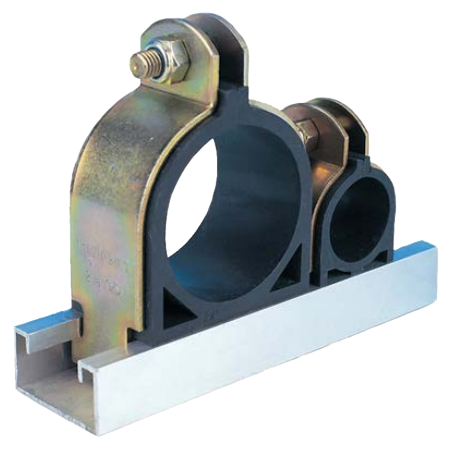

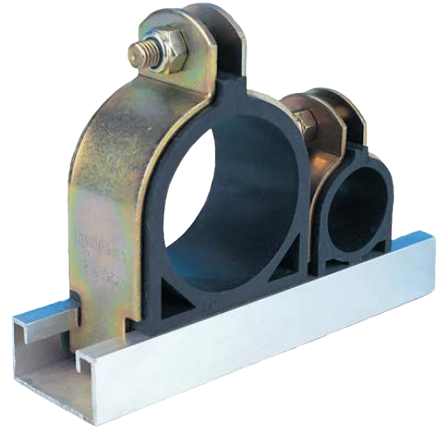

Insulclamp 1/2” 38mm | Zinc Passivated Steel | Thermo-Rubber Cushion | Easy Installation | by Aspen Pumps
The Insulclamp 1/2” 38mm is designed for effective pipe support in HVAC and refrigeration systems, featuring a durable zinc passivated steel construction and a thermo-rubber cushion that withstands temperatures up to 130°C. Ideal for commercial air conditioning installations, this clamp insulates against heat loss and minimizes vibration, ensuring long-lasting performance and energy efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Insulclamp 1/2” 38mm | Zinc Passivated Steel | Thermo-Rubber Cushion | Easy Installation | by Aspen Pumps
Brand: Aspen Pumps
SKU: B6267
Alternatively Known As: Pipe Support Channel Clip, Insulated Pipe Clamp, HVAC Pipe Clip
Technical Specifications
- Material: Zinc passivated steel with rubber cushion
- Maximum temperature for rubber cushion: 130°C
- Maximum temperature for zinc bracket: 1000°C
- Maximum recommended distance per clip: 1.2m
- Dimensions (H x L x W): 40mm x 60mm x 50mm
- Weight: 0.2 kg
Key Features
- Easy installation into 40x40mm and 40x20mm channel
- Insulates against heat loss and reduces vibration
- Quick to install with lock nuts
- Supports individual pipes with thermo-rubber cushion between two metal plates
- Thermo-rubber cushion insert withstands maximum temperature of 130°C
- Zinc bracket withstands temperatures up to 1000°C
Professional Installation Requirements
- Installation by a qualified HVAC technician or professional pipe fitter is recommended to ensure proper support and insulation.
Applications
- Commercial air conditioning installations
- Refrigeration installations
- Pipe support in HVAC systems
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Reduces heat loss through insulation, improving energy efficiency of HVAC systems
- Minimizes vibration, reducing wear and tear and extending system lifespan
Warranty Information
Standard manufacturer warranty applies. Please refer to Aspen Pumps for specific warranty details.
Available Now
The Aspen Pumps Insulclamp 1/2” 38mm is available for immediate purchase, ideal for commercial HVAC and refrigeration pipe support applications.
