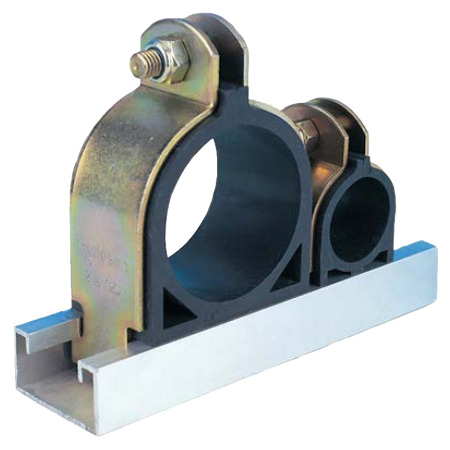

Insulclamp 1 3/8” 60mm | Zinc Passivated Steel | Thermo-Rubber Cushion | Easy Installation | by Aspen Pumps

BRAND: Aspen Pumps
SKU: B6265
$4.80 List price: $5.80
+ −
30 Days Return Delivery Options
The Insulclamp 1 3/8” 60mm is designed for effective pipe support in HVAC and refrigeration systems. Made from zinc passivated steel with a thermo-rubber cushion, it insulates against heat loss and minimizes vibration, ensuring durability and efficiency. Ideal for commercial air conditioning installations, this clamp supports individual pipes with ease, making it a reliable choice for professionals.

Product Name/Title: Insulclamp 1 3/8” 60mm | Zinc Passivated Steel | Thermo-Rubber Cushion | Easy Installation | by Aspen Pumps

Brand: Aspen Pumps

SKU: B6265

Alternatively Known As: Pipe Support Channel Clip, Insulated Pipe Clamp, HVAC Pipe Support Clip

Technical Specifications
  • Material: Zinc passivated steel with rubber cushion
  • Maximum temperature for rubber cushion: 130°C
  • Maximum temperature for zinc bracket: 1000°C
  • Maximum recommended distance per clip: 1.2m
  • Dimensions (H x L x W): 40mm x 60mm x 60mm
  • Weight: 0.3 kg
Key Features
  • Easy installation into 40x40mm and 40x20mm channel
  • Insulates against heat loss and reduces vibration
  • Quick to install with lock nuts
  • Supports individual pipes with thermo-rubber cushion between two metal plates
  • Thermo-rubber cushion insert withstands maximum temperature of 130°C
  • Zinc bracket withstands up to 1000°C
Professional Installation Requirements
  • Installation should be performed by qualified HVAC or refrigeration professionals to ensure proper support and insulation.
Applications
  • Commercial air conditioning installations
  • Refrigeration installations
  • Pipe support in HVAC systems
Standards & Compliance
  • Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
  • Reduces heat loss through insulated pipe support
  • Minimizes vibration, potentially extending equipment lifespan and reducing waste
Warranty Information

Standard manufacturer warranty applies. Please refer to Aspen Pumps for detailed warranty terms.

Available Now

The Aspen Pumps Insulclamp 1 3/8” 60mm is available for immediate purchase, ideal for commercial HVAC and refrigeration pipe support applications.
