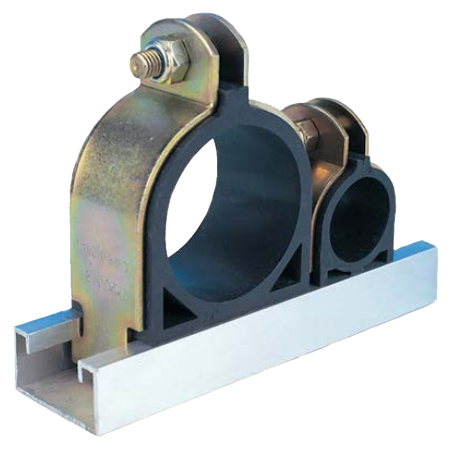

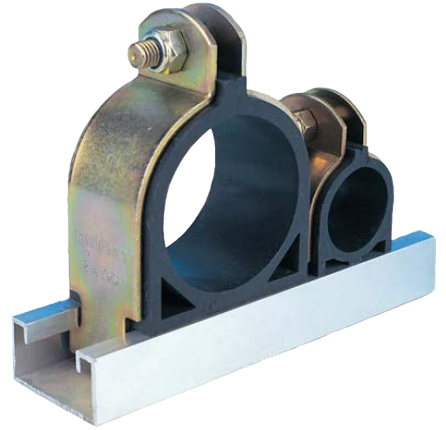

Insulclamp 1/4” 32 | Zinc Passivated Steel | Thermo-Rubber Cushion | Heat Insulation | by Aspen Pumps
The Insulclamp 1/4” 32 is designed for effective pipe support in HVAC and refrigeration systems, featuring a durable zinc passivated steel construction and a thermo-rubber cushion that withstands temperatures up to 130°C. Ideal for commercial air conditioning installations, this clamp minimizes heat loss and vibration, ensuring reliable performance and extended equipment life.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Insulclamp 1/4” 32 | Zinc Passivated Steel | Thermo-Rubber Cushion | Heat Insulation | by Aspen Pumps
Brand: Aspen Pumps
SKU: B6268
Alternatively Known As: Pipe Support Channel Clip, Insulated Pipe Clamp, HVAC Pipe Clip
Technical Specifications
- Material: Zinc passivated steel with rubber cushion
- Maximum temperature for rubber cushion: 130°C
- Maximum temperature for zinc bracket: 1000°C
- Maximum recommended distance per clip: 1.2m
- Dimensions (H x L x W): 32mm x 40mm x 40mm
- Weight: 0.2 kg
Key Features
- Easy installation into 40x40mm and 40x20mm channel
- Insulates against heat loss and reduces vibration
- Quick to install with lock nuts
- Supports individual pipes with thermo-rubber cushion between two metal plates
- Thermo-rubber cushion insert withstands maximum temperature of 130°C
- Zinc bracket withstands up to 1000°C
Professional Installation Requirements
- Installation should be performed by qualified HVAC or refrigeration professionals to ensure proper support and insulation.
Applications
- Commercial air conditioning installations
- Refrigeration installations
- Pipe support in HVAC systems
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Reduces heat loss through insulated pipe support
- Minimizes vibration, potentially extending equipment life and reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to Aspen Pumps for specific terms.
Available Now
The Aspen Pumps Insulclamp 1/4” 32 is available for immediate purchase, ideal for commercial HVAC and refrigeration pipe support applications.
