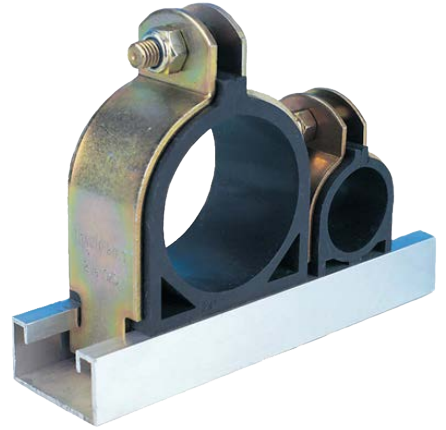

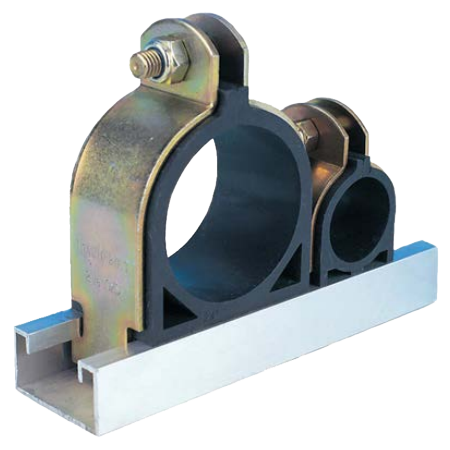

Insulclamp 2 1/8” Pipe Support Clip | Zinc Passivated Steel | Insulated Rubber Cushion | by Aspen Pumps
The Insulclamp 2 1/8” Pipe Support Clip is designed for efficient HVAC and refrigeration installations, featuring a durable zinc passivated steel construction and an insulated rubber cushion that withstands temperatures up to 130°C. Ideal for commercial applications, it reduces heat loss and vibration, ensuring reliable support for your piping systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Insulclamp 2 1/8” Pipe Support Clip | Zinc Passivated Steel | Insulated Rubber Cushion | by Aspen Pumps
Brand: Aspen Pumps
SKU: B6269
Alternatively Known As: Pipe Support Clip, Channel Pipe Clamp, Insulated Pipe Clip, HVAC Pipe Support
Technical Specifications
- Material: Zinc passivated steel with rubber cushion
- Maximum temperature for rubber cushion: 130°C
- Maximum temperature for zinc bracket: 1000°C
- Maximum recommended distance per clip: 1.2 meters
- Dimensions (H x L x W): 55mm x 55mm x 55mm
- Weight: 0.3 kg
Key Features
- Easy installation into 40x40mm and 40x20mm channel
- Insulates against heat loss and reduces vibration
- Quick to install with lock nuts
- Supports individual pipes with thermo-rubber cushion between two metal plates
- Thermo-rubber cushion withstands temperatures up to 130°C
- Zinc bracket withstands temperatures up to 1000°C
Professional Installation Requirements
- Installation by a qualified HVAC technician or plumber is recommended to ensure proper support and insulation of pipes.
Applications
- Commercial air conditioning installations
- Refrigeration installations
- Pipe support in HVAC systems
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Reduces heat loss through pipe insulation, improving energy efficiency
- Minimizes vibration, reducing wear and tear and extending pipe system lifespan
Warranty Information
Standard manufacturer warranty applies. Please refer to Aspen Pumps for specific warranty details.
Available Now
The Aspen Pumps Insulclamp 2 1/8” 92 is available for immediate purchase, ideal for commercial HVAC and refrigeration pipe support applications.
