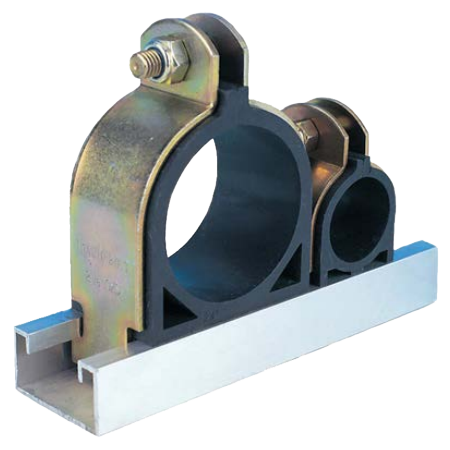

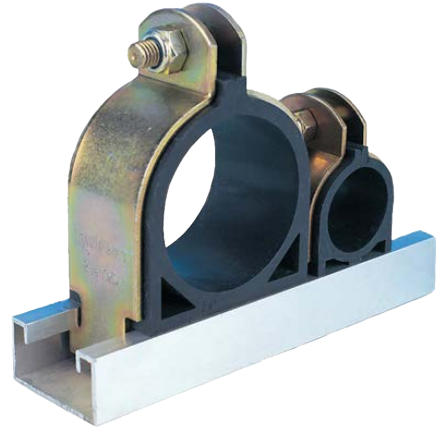

Insulclamp 3 1/8” Pipe Support Clip | Zinc Passivated Steel | Thermo-Rubber Cushion | by Aspen Pumps
The Insulclamp 3 1/8” Pipe Support Clip is designed for efficient HVAC and refrigeration installations, featuring a durable zinc passivated steel construction and a thermo-rubber cushion that withstands temperatures up to 130°C. Ideal for commercial applications, it insulates against heat loss and minimizes vibration, ensuring reliable support for individual pipes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Insulclamp 3 1/8” Pipe Support Clip | Zinc Passivated Steel | Thermo-Rubber Cushion | by Aspen Pumps
Brand: Aspen Pumps
SKU: B6271
Alternatively Known As: Pipe Support Channel Clip, Insulated Pipe Clamp, HVAC Pipe Support Clip
Technical Specifications
- Material: Zinc passivated steel with rubber cushion
- Maximum temperature for rubber cushion: 130°C
- Maximum temperature for zinc bracket: 1000°C
- Maximum recommended distance per clip: 1.2m
- Dimensions (H x L x W): 50mm x 117mm x 40mm
- Weight: 0.3 kg
Key Features
- Easy installation into 40x40mm and 40x20mm channel
- Insulates against heat loss and reduces vibration
- Quick to install with lock nuts
- Supports individual pipes with thermo-rubber cushion between two metal plates
- Thermo-rubber cushion insert withstands maximum temperature of 130°C
- Zinc bracket withstands up to 1000°C
Professional Installation Requirements
- Installation by a qualified HVAC technician or professional pipe fitter is recommended to ensure proper support and insulation.
Applications
- Commercial air conditioning installations
- Refrigeration installations
- Pipe support in HVAC systems
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Reduces heat loss through pipe insulation
- Minimizes vibration, extending pipe and system lifespan
Warranty Information
Standard manufacturer warranty applies. Please refer to Aspen Pumps warranty policy for details.
Available Now
The Aspen Pumps Insulclamp 3 1/8” 117mm is available for immediate purchase, ideal for commercial HVAC and refrigeration pipe support applications.
