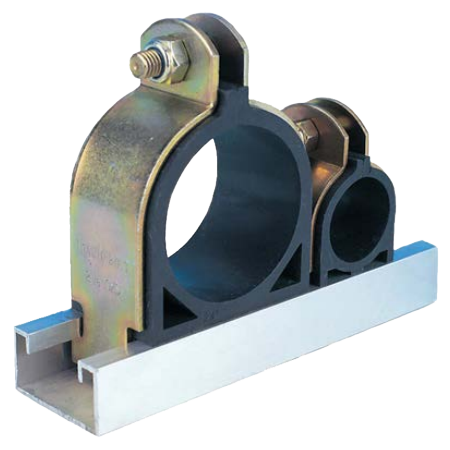

Insulclamp 5/8” 41mm | Zinc Passivated Steel | Insulated Pipe Clip | Easy Installation | by Aspen Pumps
The Insulclamp 5/8” 41mm is designed for effective pipe support in HVAC and refrigeration systems. Made from zinc passivated steel with a thermo-rubber cushion, it insulates against heat loss and minimizes vibration, ensuring durability and compliance with AS/NZS 1170 standards. Ideal for commercial air conditioning installations, this clamp supports pipes with ease and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Insulclamp 5/8” 41mm | Zinc Passivated Steel | Insulated Pipe Clip | Easy Installation | by Aspen Pumps
Brand: Aspen Pumps
SKU: B6276
Alternatively Known As: Pipe Support Clamp, Insulated Pipe Clip, HVAC Pipe Clamp, Refrigeration Pipe Support
Technical Specifications
- Material: Zinc passivated steel with rubber cushion
- Maximum temperature for rubber cushion: 130°C
- Maximum temperature for zinc bracket: 1000°C
- Maximum recommended distance per clip: 1.2m
- Fits 40x40mm and 40x20mm channel sizes
- Dimensions (H x L x W): 50mm x 80mm x 41mm
- Weight: 0.2 kg
Key Features
- Easy installation into 40x40mm and 40x20mm channel
- Insulates against heat loss and reduces vibration
- Quick to install with lock nuts
- Supports individual pipes with thermo-rubber cushion between two metal plates
- Thermo-rubber cushion withstands maximum temperature of 130°C
- Zinc bracket withstands temperatures up to 1000°C
Professional Installation Requirements
- Installation by a qualified technician or tradesperson is recommended to ensure secure and compliant pipe support.
Applications
- Commercial air conditioning installations
- Refrigeration systems
- Pipe support in HVAC and refrigeration setups
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Reduces heat loss through insulated pipe support
- Minimizes vibration, extending pipe and system lifespan
Warranty Information
Standard manufacturer warranty applies. Please refer to Aspen Pumps for detailed warranty terms.
Available Now
The Aspen Pumps Insulclamp 5/8” 41mm is available for immediate purchase, ideal for commercial HVAC and refrigeration pipe support applications.
